CS SPREADER CONTROLLER

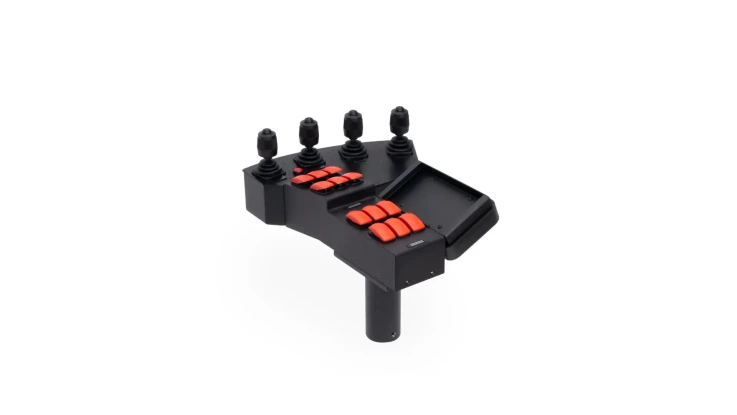

Stand-Alone Joystick Armrests

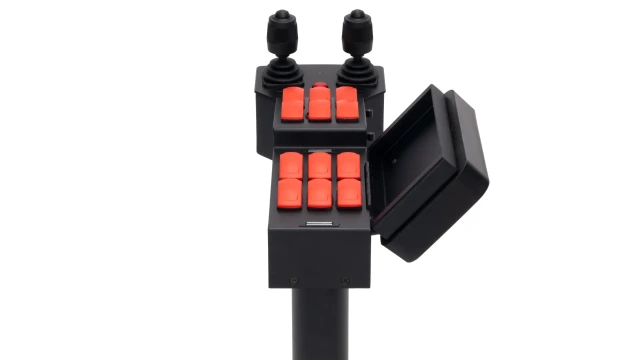

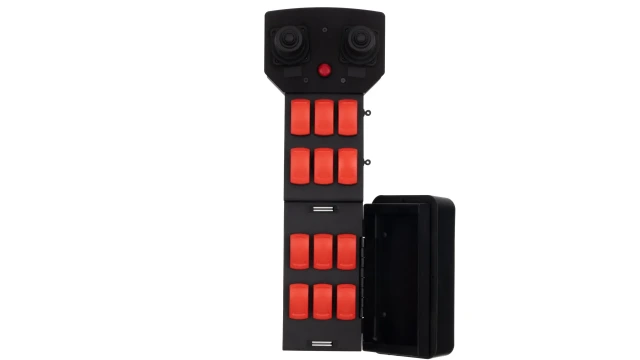

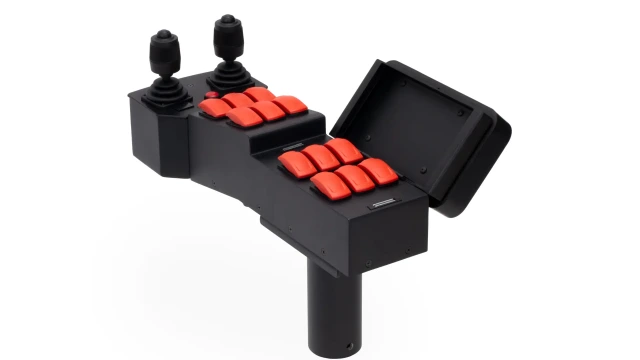

Ergonomics. Precision. Comfort. Designed for long hours on the road during intense Canadian winter operations, the CS 106 Stand-Alone Joystick Armrest provides unmatched ease of use and control for your Compu-Spread systems. Built to integrate directly into municipal plow trucks and contractor fleets, the CS 106 offers superior operator comfort, simplified wiring, and reliable performance in extreme environments.

Product Overview

The CS 106 is a purpose-built armrest-mounted joystick controller that allows operators to manage plow and spreader functions without removing their hand from the control position. This design reduces fatigue and improves operational safety and accuracy in snow and ice management.

✅ Integrated Joystick & Housing

Compact, rugged design with an ergonomic layout that fits most vehicle seat armrests or side panels.

✅ Single-Hand Precision Control

Multi-axis joystick enables intuitive operation of plow lift, angle, spinner, auger, pre-wet, blast, and pause—all with one hand.

✅ Plug-and-Play Installation

Pre-configured harness with support for both analog and CAN-based Compu-Spread systems. Simple, fast mounting.

✅ Operator-Friendly Layout

Button placement and joystick angle optimized through feedback from real-world operators for reduced fatigue.

✅ Built for Harsh Environments

Engineered with salt-resistant materials, vibration-damping construction, and cold-weather reliability.

Applications

🚜 Municipal Plow Trucks

Outfitted for town, city, and regional use, the CS 106 offers enhanced ergonomic control for operators clearing residential streets, intersections, and bike lanes.

🛣️ Provincial and Highway Maintenance Fleets

Ideal for long-haul and heavy-duty vehicles servicing provincial roads, interstates, and major routes with extensive plow and liquid application responsibilities.

🧊 Liquid Anti-Icing & Pre-Wet Control

Seamlessly integrates with Compu-Spread’s liquid systems, enabling proactive treatment of roads during pre-storm events or black ice conditions.

🛻 Contractor-Owned Snow Removal Vehicles

Reliable and professional-grade, the CS 106 is a popular choice for private contractors managing commercial lots, shopping centers, campuses, and airport runways.

🔧 Retrofit Applications

Whether upgrading an aging fleet or installing on a new vehicle, the CS 106 can be adapted to almost any in-cab layout with minimal modifications.

Technical Specifications

Joystick Type: 3-axis control with integrated push buttons

Mounting: Universal and custom armrest bracket compatibility

Material: High-impact composite shell with anti-corrosion coating

Power Input: 12–24V DC (vehicle compatible)

Communication Protocol: Supports analog or CAN interface

Temperature Range: -40°C to +70°C

Ingress Protection: Rated IP67 – fully sealed against dust and water ingress

Weight: Approx. 1.5 kg

Certifications: CE, RoHS, SAE J1455-compliant

Designed & Field-Tested: For municipal and contractor fleets across North America
