| Max. Conveying Load: |
Up to 3,000 kg |
| Workpiece Carrier Dimensions: | Standard up to 2,200 x 3,000 mm |

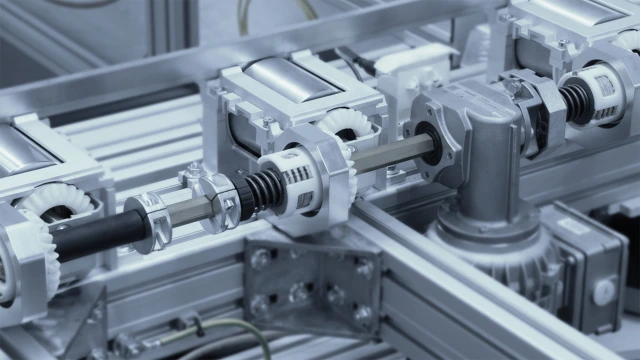

| Drive System: | All-electric, pneumatic-free, king shaft drive (maintenance-free & self-lubricating) |
| Conveyor speed: | Up to 24 m/min |
| Transport Height: | 350 mm (low) |
| Motors: | 180W and 250W motors available, interface for third-party motors |
| Modular Systems: | Standardized aluminum profile modular system |
| Special Components: | Indexing units, rotating units, transfer units, positioning units |

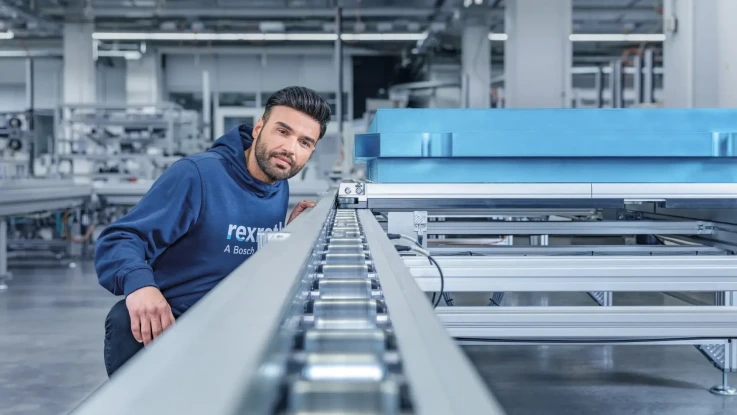

BOOST YOUR PRODUCTION with the transfer system TS 7plus
For the precise and efficient material flow of heavy and bulky workpieces, the heavy-duty transfer system TS 7plus sets new standards. Specifically developed for the assembly of batteries and e-axles in e-mobility, it solves challenges where traditional systems reach their limits and costly custom solutions would be necessary.

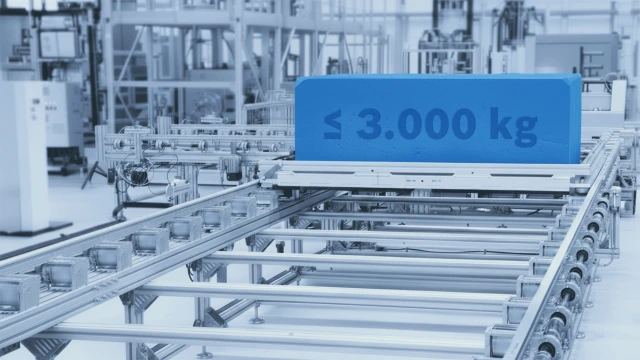

As an all-electric and pneumatic-free conveyor system, it flexibly transports loads of up to 3,000 kg through your assembly lines. The standardized modular system and the low-maintenance king shaft drive guarantee maximum system availability and reduce your Total Cost of Ownership.
Benefit from high conveying speeds, intuitive configuration with the MTpro software, and the flexible expandability of existing systems. Maximize the productivity of your facilities – with the efficient and future-proof heavy-duty transport of the TS 7plus.
Key technical data
