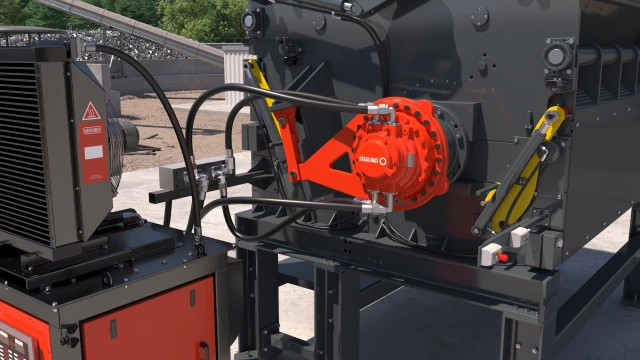

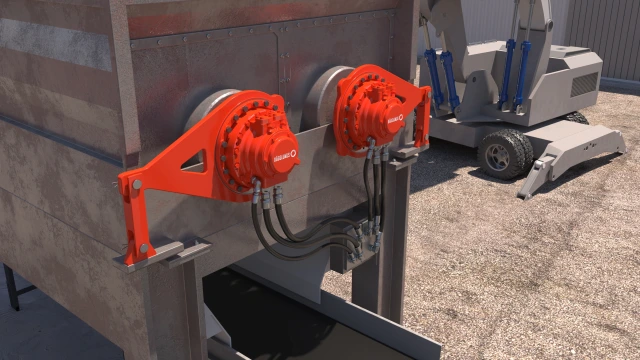

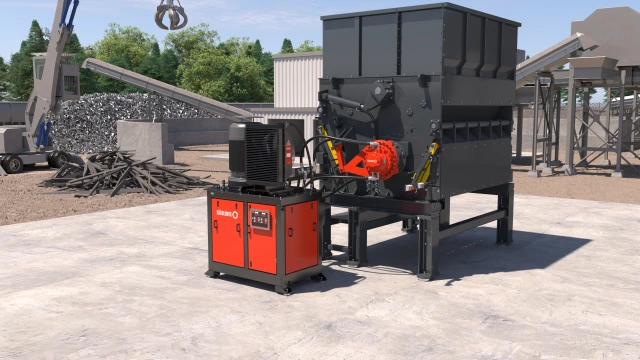

Hägglunds CA Hydraulic Motor – Maximum power in a compact design The Hägglunds CA motor was developed with one specific goal in mind: to deliver uncompromising power and exceptional durability in the most demanding applications where limited space and mounting weight are critical.
Thanks to its extremely compact external dimensions and drastically reduced dead weight, the Hägglunds CA motor features a power-to-weight ratio that is outstanding and unique on the market. This exceptionally compact design allows it to deliver tremendous torque with minimal demands on valuable installation space. Crucially, smaller dimensions do not mean any compromises – this motor guarantees the exact same legendary durability, maximum reliability, and peak operating efficiency for which all drives in the Hägglunds family have been renowned for years.
Hägglunds CA

High Power Density

Thanks to its advanced design, the CA motor offers exceptionally high performance in a compact housing, allowing it to be installed even in spaces with limited room. This is the ideal solution for machinery where every centimeter counts, yet maximum power is required.

Hägglunds CA

Energy Efficiency and Versatility

Modern design and high mechanical efficiency ensure that the CA consumes significantly less energy than traditional motors, translating directly into lower operating costs. Additionally, the ability to operate in free-wheeling mode allows for further savings and extends the motor's service life by reducing loads during downtime.

Hägglunds CA

Load resistance and application flexibility

The robust construction, resistant to shock loads, guarantees a long service life even under the toughest operating conditions. Furthermore, the bidirectional operation of its symmetrical design allows for flexible adaptation to various applications, making the CA208 a versatile solution for industry.

See what the Hägglunds CA can do:

By choosing the Hägglunds CA motor, you gain a real competitive edge and the confidence of trouble-free operation for your facility. Discover the key benefits:

Precise construction – the compact design facilitates installation even in hard-to-reach places.

High performance – optimal power transmission with low energy consumption.

Durability – robust workmanship guarantees a long service life even in extreme conditions.

Versatility – adapted to a wide range of industrial applications.

Very low moment of inertia – enables instantaneous response, rapid changes in rotation direction, and full process control.

The Hägglunds CA motor is a proven partner in the harshest industrial conditions. It performs perfectly in heavy-duty applications, including the demanding mining and raw materials sectors:

Mining industry – ideal for machines operating under heavy conditions, e.g., conveyors, crushers.

Raw material processing – support for production lines, e.g., in chemical or metallurgical plants.

Power engineering – application in water turbines and hydraulic systems.

Logistics and transport – drive systems for belt conveyors, hoists, or sorting systems.

The Hägglunds CA is an advanced radial piston motor with a rotating cylinder block (hollow shaft) and a stationary housing. How does it work?

Construction: The cylinder block is mounted in the housing on heavy-duty, stationary roller bearings. An even number of pistons are arranged radially inside the block, and a dedicated distributor precisely directs the oil flow.

Torque generation: Each piston is connected to a cam roller. Under hydraulic pressure, the rollers are pressed against the wavy surface of the cam ring (which is rigidly connected to the housing), generating smooth rotational movement.

Drive transmission: The available torque is directly proportional to the pressure in the system. The connection to the driven machine's shaft is made via a hollow shaft or a spline.

Connections: The main supply lines are connected to ports A and C in the connection block, while the drain (leakage) lines are connected to ports D in the motor housing.

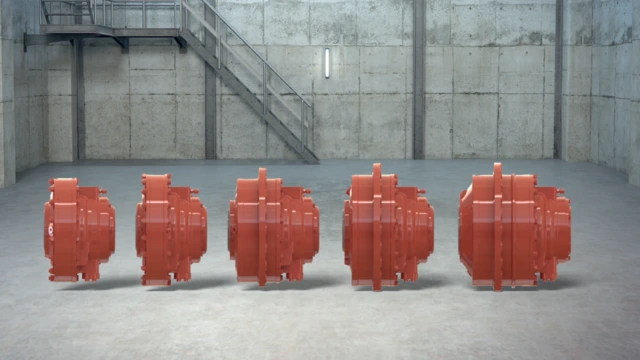

The Hägglunds CA Motor Family – Scalable power for every application

From compact units for space-constrained applications to the new, powerful CA 280 model for the heaviest industrial tasks. The Hägglunds CA series offers a perfectly tailored drive while maintaining an excellent power-to-weight ratio in every size.

Detailed technical specifications.

Want to select the perfect motor size for your application? Visit our official product page, where you will find full technical documentation, CAD models, and a configurator.
