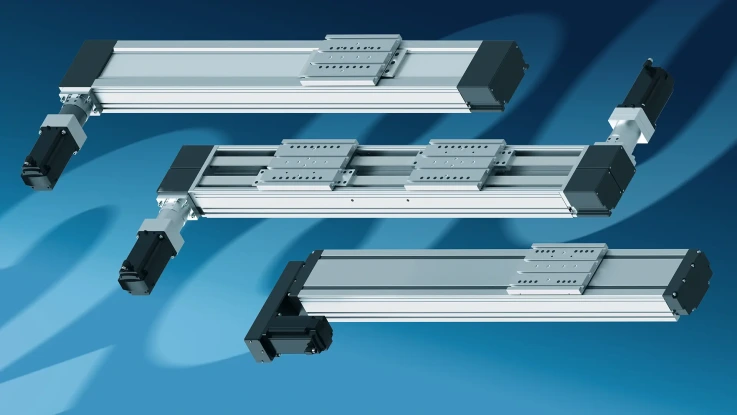

Three versions of the Compact module family are shown: CKK- and CKR-280 as well as the CKR-280 with double table section. Power performance for heavyweights: compact modules size 280

Strong, compact, precise:

  • New benchmark for heavy-duty applications
  • Extremely high rigidity in bending and torsion
Order now!

Linear axes for heavy-duty applications: The new compact modules size 280

Two compact module CKK-280 and CKR-280 can be seen in the foreground, an archer in the background.

New benchmark for heavy load applications up to 385 kg

The new compact modules with ball screw drive (CKK) or belt drive (CKR) in size 280 open up completely new application possibilities in the heavy load range up to 385 kg. Applications include the high-precision assembly of machine tools or the dynamic and repeatable high-performance assembly of battery modules. They are not only extremely rigid in terms of longitudinal and torsional load moments but are also very flexible in use: engineering of single axes, multi-axis systems and even linear robots is reduced to a minimum, while complete automation packages with motor, open- and closed-loop controllers and optional operating software also enormously speed up commissioning and make operation easier, even when changes have to be made at very short notice. This makes factory automation easier, faster and more efficient.

In the foreground you can see a compact module CKR-280 with two table parts, in the background a drummer.

Double cycle rate for loads up to 770 kg

Innovation in the heavy-duty sector: The combination of two axes in one unit opens up unimagined potential. The new compact module CKR-280, featuring a dual belt drive, can operate two carriages completely independently and with precision. This not only saves space, costs and assembly time, but also guarantees optimal performance. The ready-to-install linear axes impress with their inherent rigidity, faster cycle rate and exceptional load-bearing capacity of up to 385 kg per carriage, depending on installation position, for a total of 770 kg – one axis, two drives, endless possibilities.

Product information

Advantages at a glance

  • Exceptionally stable: offering outstanding rigidity against bending and torsion
  • Precise: high repeatability
  • Highly dynamic: effortlessly moves heavy loads with max. acceleration
  • Fast: in design and configuration using modern engineering tools
  • Multi-compatible: with various sizes, highly scalable, suitable for multi-axis systems and cobots
  • Proven: tailored components all from a single source

Key technical data

  • Size 280
  • Max. payload:
    • One belt version up to 385 kg
    • Dual belt version up to 770 kg
  • Max. travel range: 5,500 mm (greater lengths on request)
  • Max. travel speed: 5 m/s
  • Max. acceleration: 5g
  • Repeatability:
    • CKK ± 0,005 mm
    • CKR ± 0,05 mm
  • Dual belt drive with two carriages
  • Drive variants: Ball screw assembly / belt drive
