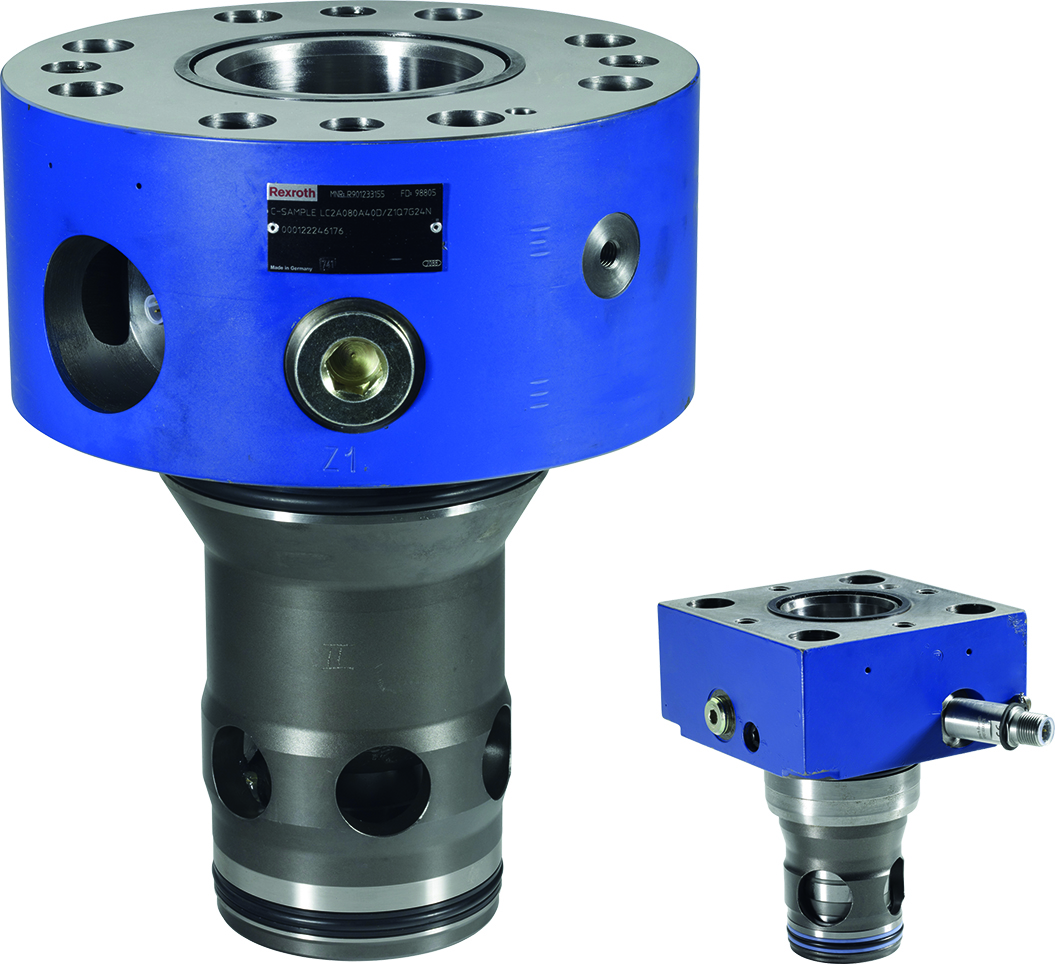

2-way cartridge valve, actively controllable
Adviesaanvraag
typesleutel
LC
2A
-
1X
/
Result count
217 van 217
Type
Logic Cartridge
LC
Logic Cartridge
Activation
2-level, active
2A
2-level, active
Size
040
Size 40
050
Size 50
063
Size 63
080
Size 80
100
Size 100
125
Size 125 (only version "F", valve poppet with overlap; not with version "450")
Control spool design
A
A1 : A2 = 2 : 1 (A2 = 50 %)
B
A1 : A2 = 14,3 : 1 (A2 = 7 %)
D
A1 : A2 = 1 : 0 (A2 = 0 %)
Spring
00
Without spring
40
With spring, cracking pressure approx. 4 bar (referring to control spool design "A")
Valve poppet
D
Valve poppet with damping nose
E
Valve poppet without damping nose
F
Valve poppet with overlap (preferred with "spool position monitoring"; only with control spool design "B")
Series
Component series 10 … 19 (10 … 19: unchanged installation and connection dimensions)
1X
Component series 10 … 19 (10 … 19: unchanged installation and connection dimensions)
Maximum operating pressure
420 bar (standard)
450
450 bar
Active area
U
Z1 and Z2
X
X (not with version "450")
Y
Y (not with version "450")
Z1
Z1
Z2
Z2
Spool position monitoring
Without position switch ("1" on side "Y" – can be retrofitted)
Q.Q.
Without position switch, with 2 installation bores
Q.Q.T
Without position switch, with 2 installation bores
Q.Q7
With 1 position switch and 2nd installation bore
Q.Q7T
With 1 position switch and 2nd installation bore ("1" on side "Y" – not fitted, attachment side of "2" NG-dependent – mounted)
Q7
With 1 position switch ("1" on side "Y" – mounted)
Q7Q7T
With 2 position switches "1" on side "Y" – mounted, attachment side of "2" NG-dependent – mounted)
Q8
With 1 position switch ("1" on side "Y" – mounted)
Q9
Inductive sensor with analog output (1 … 9 V DC)
Electrical connection for position switch
Without position switch
G08
UB = 8 V DC (NAMUR; only with version "Q8"; not with version "450")
G24
UB = 24 V DC (standard; only with version "Q7" and "Q9")
Pilot oil bore in the control spool
Without pilot oil bore
A160
NG40 – Maximum pilot oil bore Ø 16.0 mm
A200
NG50 – Maximum pilot oil bore Ø 20.0 mm
A260
NG63 – Maximum pilot oil bore Ø 26.0 mm
A320
NG80 – Maximum pilot oil bore Ø 32.0 mm
A400
NG100 – Maximum pilot oil bore Ø 40.0 mm
Nozzle
Without orifice
Without orifice
Nozzle
Without orifice
Without orifice
Nozzle
Without orifice
D10Z99S99
D10Z99S99
D18S12
D18S12
D20Z99S99
D20Z99S99
D25
D25
D99
D99
D99S99
D99S99
D99Y99S99
D99Y99S99
Nozzle
Without orifice
Without orifice
Nozzle
Without orifice
Without orifice
Nozzle
Without orifice
Without orifice
Nozzle
Without orifice
Without orifice
Nozzle
Without orifice
Without orifice
Nozzle
Without orifice
Without orifice
Corrosion resistance
None
J3
Improved corrosion protection (240 h salt spray test according to EN ISO 9227)
Seal material
F
FKM seals (preferred)
N
NBR seals
P
H-ECOPUR seals (with version "450")
Documentatie
Add to basket
| You have successfully finished your selection. |
| Materiaalnummer: |
Product description
typesleutel:LC2A-1X/
| The following data were selected. | ||
|---|---|---|
| Type | LC | Logic Cartridge |
| Activation | 2A | 2-level, active |
| Series | 1X | Component series 10 … 19 (10 … 19: unchanged installation and connection dimensions) |
| Nozzle | Without orifice | |
| Nozzle | Without orifice | |
| Nozzle | Without orifice | |
| Nozzle | Without orifice | |
| Nozzle | Without orifice | |
| Nozzle | Without orifice | |
| Nozzle | Without orifice | |
| Nozzle | Without orifice | |
