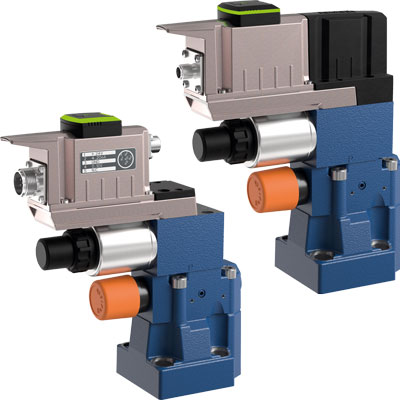

Pilot-operated proportional pressure relief valves with or without digital on-board electronics (OBED) - Type DBEM, DBEME and DBEMA
Consultation request
Type code
DBE
M
-
8X
/
G24
Result count
37 from 37
Type
Proportional-pressure relief valve
DBE
Proportional-pressure relief valve
Pressure limitation
Maximum pressure limitation
M
Maximum pressure limitation
Control
For external control electronics
A
With on-board electronics (OBED), pressure-controlled
E
With on-board electronics, (OBED)
Size
10
Size 10
20
Size 25
30
Size 32
Type of connection
Subplate mounting
G
Threaded connection
Series
Series 80 … 89 (80 … 89: unchanged installation and connection dimensions)
8X
Series 80 … 89 (80 … 89: unchanged installation and connection dimensions)
Pressure rating
100
100 bar
200
200 bar
315
315 bar
350
350 bar
50
50 bar
Pilot oil return
XY
External pilot oil return (bleed port X)
Y
External pilot oil return
Pressure sensor
Internal
A
External
Supply voltage
Direct voltage 24 V
G24
Direct voltage 24 V
Coil
-8
800 mA
1600 mA
Electrical connection
K24
Connector 5-pole, M12 x 1
K31
Connector 7-pole (6 + PE) according to EN 175201-804
K4
Connector 3-pole (2 + PE) according to EN 175301-803
Electronics interfaces
External control electronics
A1
Command value input 0 ... 10 V; acutal value output 0 …10V
F1
Command value input 4 ... 20 mA; actual value output 4 …20 mA
L1
IO-Link interface (only with on-board electronics "E" and "A", for class B)
Accessories, service interface
Without Bluetooth®-interface
B
With Bluetooth®-interface (Dongle; only with on-board electronics "E" and "A")
seal material
M
NBR-seals
V
FKM-seals
Additional information
Whithout
Whithout
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:DBEM-8X/G24
| The following data were selected. | ||
|---|---|---|
| Type | DBE | Proportional-pressure relief valve |
| Pressure limitation | M | Maximum pressure limitation |
| Series | 8X | Series 80 … 89 (80 … 89: unchanged installation and connection dimensions) |
| Supply voltage | G24 | Direct voltage 24 V |
| Additional information | Whithout | |
