Providing you more speed in processes: that moves us.

BOOST YOUR PRODUCTION with the TS 2plus transfer system.

The Rexroth transfer system is designed for transport of workpiece pallets up to 240 kg. It features standardized modular units that can be combined in many ways to create a single system. The modular design permits the cost-effective use of ratio potentials in production. All components are designed to be particularly robust and ensure high operational safety. The systems 3-phase motors additionally enable an effective energy use thanks to efficiency class IE3.

How to Choose the Right Conveyor System for Your Assembly Operation

How to Choose the Right Conveyor System for Your Assembly Operation

Whether the product being manufactured is a mobile phone or an aircraft seat, the assembly processes will likely require some combination of manual and automated transfer operations. Read the article for some expert insights on choosing the right conveyor for the job!

Download Article

Benefits of TS 2plus Transfer System

Versatile

The versatile modular system with standardized units meets the requirements for production of a wide range of different products of a variety of sectors, such as:

  • Automotive industry
  • Electronics and electrical technology with ESD-requirements
  • Medical technology and
  • Optical industry
  • Sanitary

Robust

TS 2plus is reliable even under difficult conditions, such as in ESD environments or in clean room and dry room applications. It manages a high maximum load of up to 240 kg per workpiece pallet.?Additionally the market-proven components ensure a high availability.

Adaptable

The all-rounder for cost-effective production can be installed quickly thanks to it's modularity. The workpiece pallet dimensions tailored to the product size and range from 160 x 160 to 1,200 x 1,200 mm. Four types of conveyor media are combinable as needed: Polyamide belt, toothed belt, flat top chain and accumulation roller chain. This allows the system solution to be scaled quickly for any requirement and to realize of a vast array of system layouts.

TS 2plus Application Examples

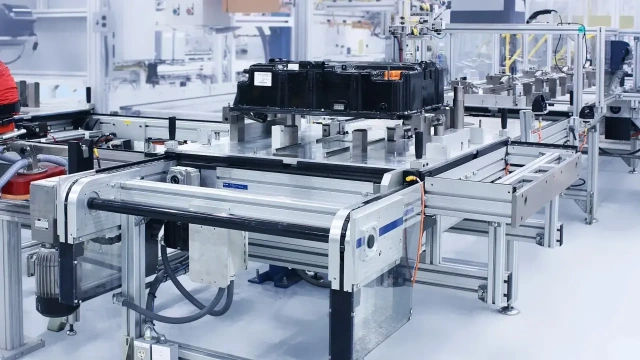

Battery pack assembly in the automotive industry
Battery pack assembly in the automotive industry

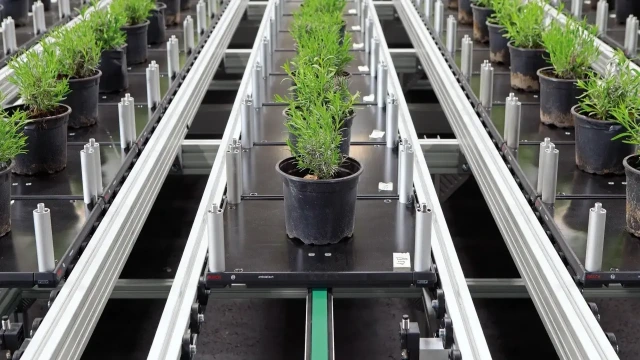

Energy-efficient plant conveyor system
Energy-efficient plant conveyor system

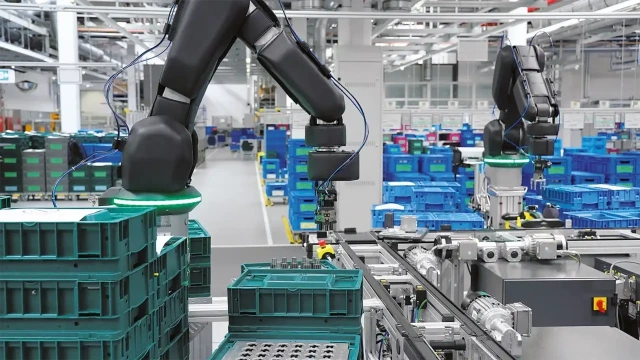

Flexible assembly line
Flexible assembly line

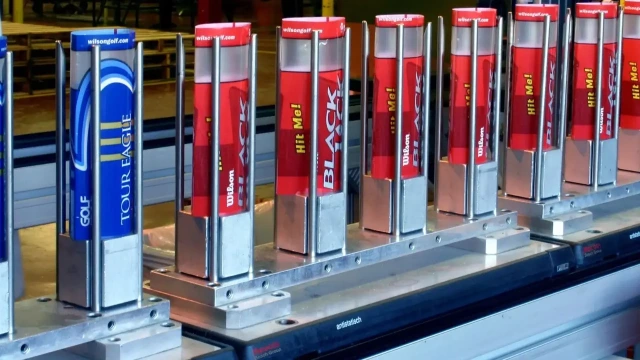

Transport of golf ball packaging
Transport of golf ball packaging

Key Technical Data

Mass of workpiece pallet: Up to 240 kg
Size of workpiece pallet: 160 x 160 mm to 1,200 x 1,200 mm
Workpiece pallet types: Carrying plate made of steel or aluminum, alternatively open frame made of aluminum profiles
Conveyor media: Belt, toothed belt, flat top chain, accumulation roller chain, Vplus chain
Conveyor speed: 6/9/12/15/18 m/min
Section load: Up to 200 kg/m in accumulation

Transfer system project planning free of charge

Make the most of the MTpro planning software. Nearly all of our technology products are stored in this tool. Design your individual transfer system quickly via drag & drop functionality.

Engineering Tool MTpro on one screen

MTpro planning software

Design your transfer systems from the initial idea to the implementation in one tool.

Get Design Support

MTpro
MTpro Design Support

Simulation with Visual Components

Test a design via simulation and make tweaks before the process gets too far along.

Tell us about your project

View the TS 2plus Catalog

Our mission is to provide you with the best conveyor systems for every application. Our TS 2plus is just one of the complete, energy efficient solutions we offer.

View Catalog

View U.S. Catalog Addendum

We have a select number of components that are specific for our U.S. market customers. View the addendum to our U.S. catalog for more details.
