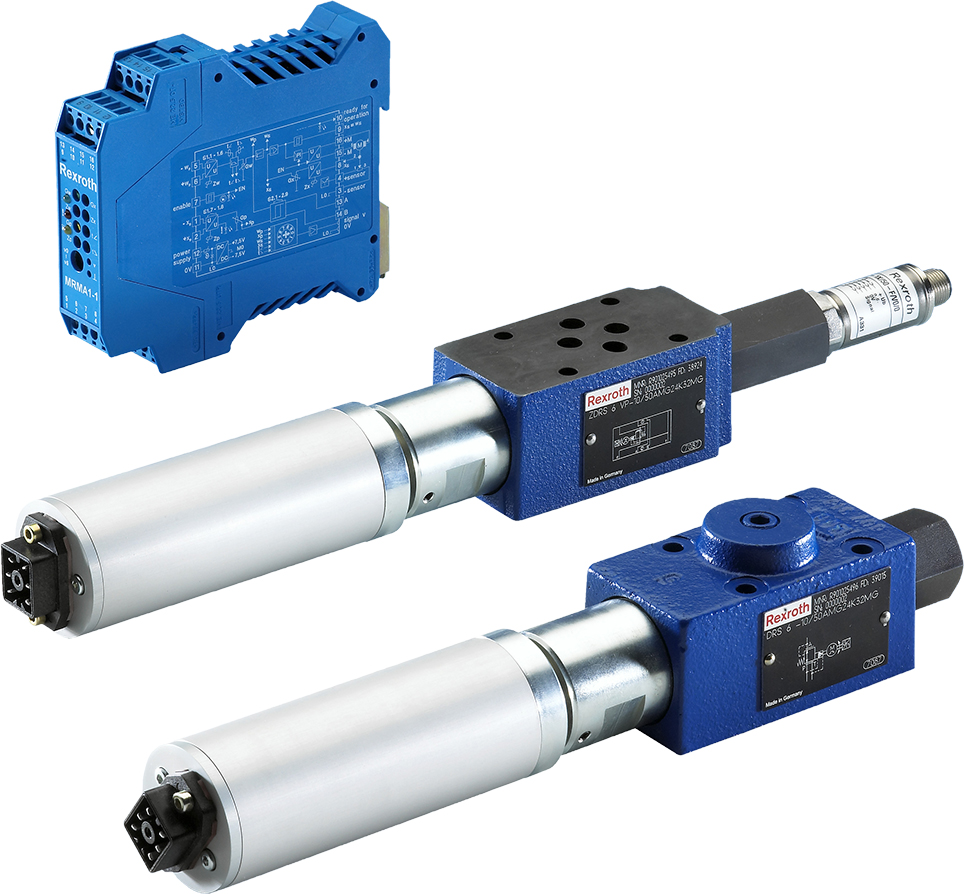

Proportional pressure reducing valve, pilot-operated, with DC motor operation
Consultation request
Type code
Z
DRS
6
VP
-
1X
/
M
G24
K32
M
G
Result count
5 from 5
Mounting
Sandwich plate design
Z
Sandwich plate design
Type
Pressure reducing valve with DC motor actuation
DRS
Pressure reducing valve with DC motor actuation
Size
Size 6
6
Size 6
Pressure reduction
In channel P (sandwich plate design)
VP
In channel P (sandwich plate design)
Series
Component series 10 … 19
1X
Component series 10 … 19
Pressure rating
100
100 bar
210
210 bar
50
50 bar
Pressure transducer
A
Without pressure transducer on device
S
With pressure transducer on device
Check valve
Without check valve
M
Without check valve
Supply voltage
Direct voltage 24 V
G24
Direct voltage 24 V
Electrical connection
Without mating connector; connector type GO51FAVM
K32
Without mating connector; connector type GO51FAVM
Seal material
NBR seals
M
NBR seals
Position feedback
With position feedback
G
With position feedback
Further details
-1
-1
[NULL]
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:ZDRS6VP-1X/MG24K32MG
| The following data were selected. | ||
|---|---|---|
| Mounting | Z | Sandwich plate design |
| Type | DRS | Pressure reducing valve with DC motor actuation |
| Size | 6 | Size 6 |
| Pressure reduction | VP | In channel P (sandwich plate design) |
| Series | 1X | Component series 10 … 19 |
| Check valve | M | Without check valve |
| Supply voltage | G24 | Direct voltage 24 V |
| Electrical connection | K32 | Without mating connector; connector type GO51FAVM |
| Seal material | M | NBR seals |
| Position feedback | G | With position feedback |
