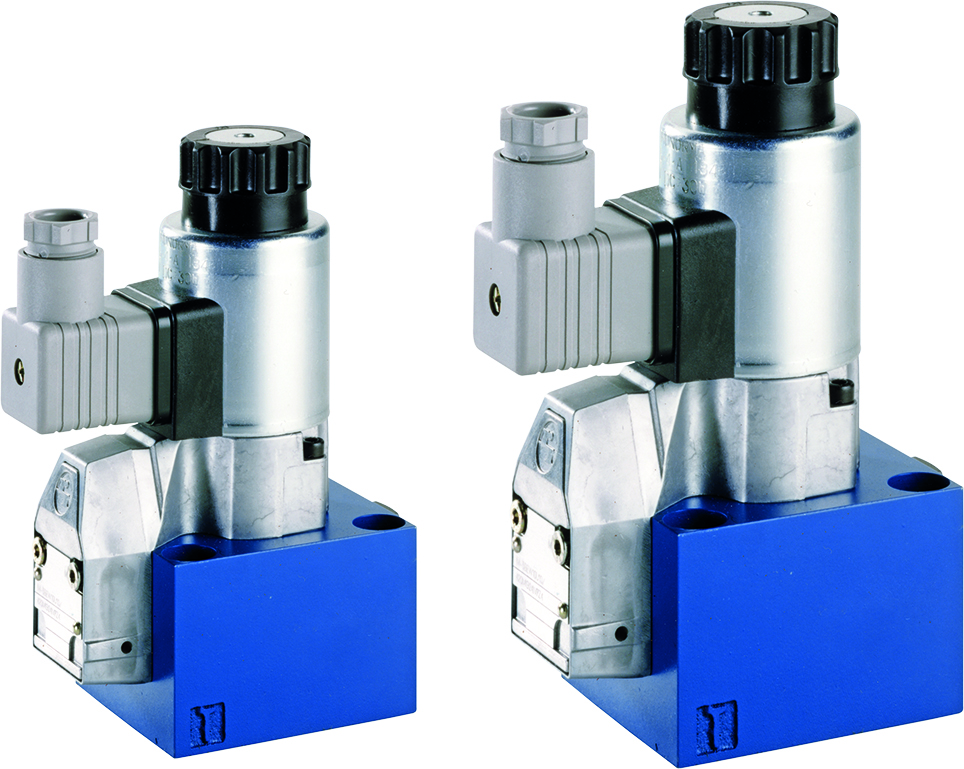

Directional poppet valves, directly operated, with solenoid actuation M-SEW 10
Consultation request
Type code
M
-
SEW
10
1X
/
M
K4
/
Result count
142 from 142
Fluid suitability
Mineral oil
M
Mineral oil
Main ports
3
3 main ports
4
4 main ports
Type
Seat valve
SEW
Seat valve
Size
Size 10
10
Size 10
Symbol
C
3/2 directional seat valve
D
4/2 directional seat valve
U
3/2 directional seat valve
Y
4/2 directional seat valve
Series
Series 10 … 19
1X
Series 10 … 19
Operating pressure
420
Operating pressure up to 420 bar
630
Operating pressure up to 630 bar
Solenoid version
High-power solenoid (air-gap) with detachable coil
M
High-power solenoid (air-gap) with detachable coil
For further ordering codes for other voltages see technical data
G205
DC voltage 205 V
G24
DC voltage 24 V
Manual override
Without manual override
N9
With concealed manual override (standard)
Mating connectors, separate order
Without mating connector; connector DIN EN 175301-803
K4
Without mating connector; connector DIN EN 175301-803
Spool position monitoring
Without position switch
QMAG24
Monitored spool position “a”
QMBG24
Monitored spool position “b”
Check valve insert / throttle insert
Without check valve insert, without throttle insert
B12
Throttle Ø 1.2 mm
B15
Throttle Ø 1.5 mm
B18
Throttle Ø 1.8 mm
B20
Throttle Ø 2.0 mm
B22
Throttle Ø 2.2 mm
P
With check valve insert
Seal material
NBR seals
V
FKM seals
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:M-SEW101X/MK4/
| The following data were selected. | ||
|---|---|---|
| Fluid suitability | M | Mineral oil |
| Type | SEW | Seat valve |
| Size | 10 | Size 10 |
| Series | 1X | Series 10 … 19 |
| Solenoid version | M | High-power solenoid (air-gap) with detachable coil |
| Mating connectors, separate order | K4 | Without mating connector; connector DIN EN 175301-803 |
