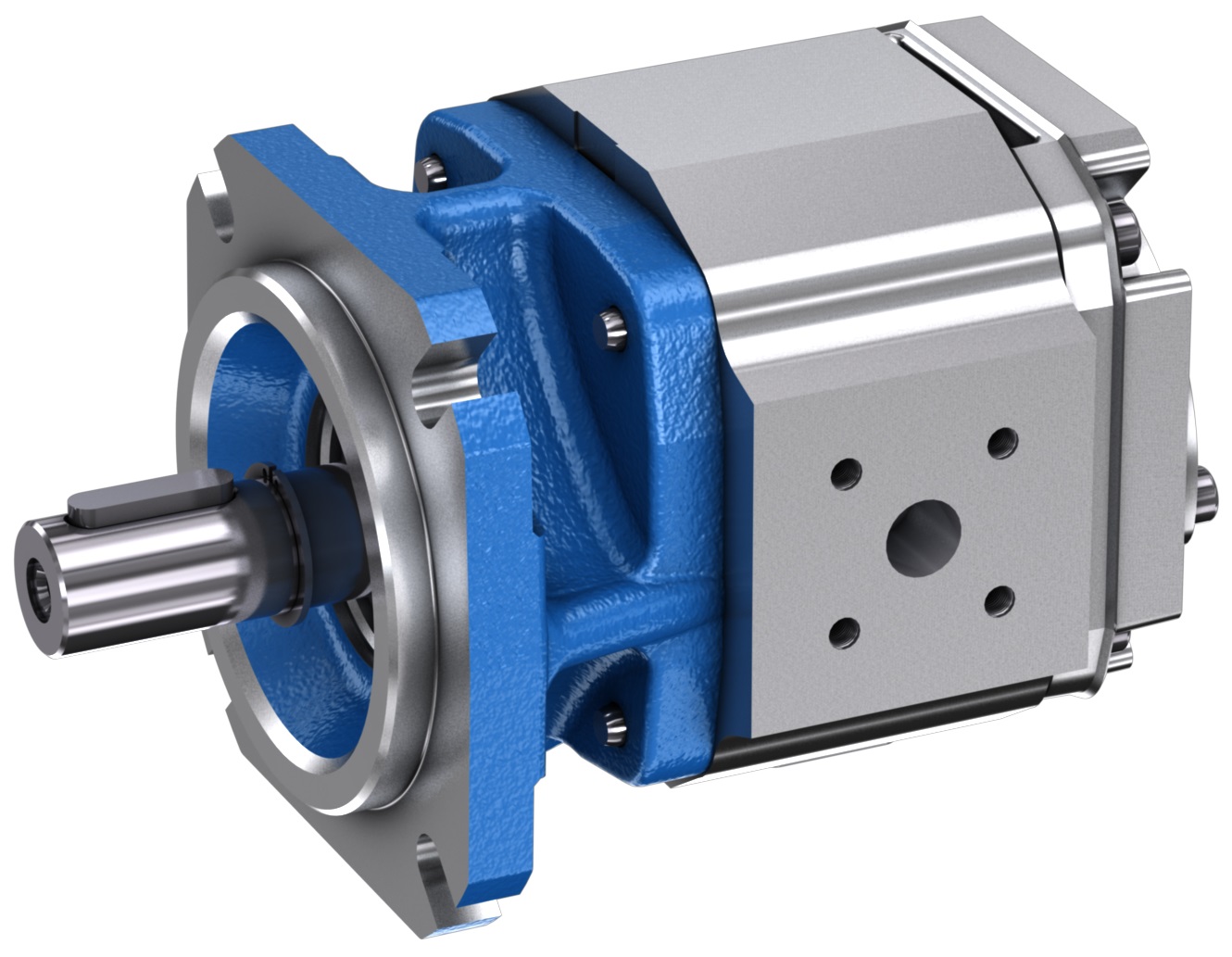

Internal gear pump PGF
Consultation request
Type code
PG
F
-
/
V
PGF hydraulic pumps are leak-gap-compensated internal gear pumps with a fixed displacement.
Display results list
Result count
193 from 193
Nominal Size
1,7
geometric 1,7 cm³ / operating pressure 180 bar
2,2
geometric 2,2 cm³ / operating pressure 210 bar
2,8
geometric 2,8 cm³ / operating pressure 210 bar
3,2
geometric 3,2 cm³ / operating pressure 210 bar
4,1
geometric 4,1 cm³ / operating pressure 210 bar
5,0
geometric 5,0 cm³ / operating pressure 180 bar
006
geometric 6,5 cm³ / operating pressure 210 bar
008
geometric 8,2 cm³ / operating pressure 210 bar
011
geometric 11,0 cm³ / operating pressure 210 bar
013
geometric 13,3 cm³ / operating pressure 210 bar
016
geometric 16,0 cm³ / operating pressure 210 bar
019
geometric 18,9 cm³ / operating pressure 210 bar
020
geometric 20,6 cm³ / operating pressure 210 bar
025
geometric 25,4 cm³ / operating pressure 210 bar
032
geometric 32,5 cm³ / operating pressure 210 bar
040
geometric 40,5 cm³ / operating pressure 180 bar
Direction of rotation
R
right
L
left
Shaft end
A
Cylindrical with fitting key according to ISO 3019-2, without through drive
E
Cylindrical with fitting key according to ISO 3019-2, with through drive
J
cylindrical with involute tooth system according to ISO 3019-1, with through drive
L
with two surfaces for open-jaw coupling, with through drive
O
Tapered 1:5 with splined shaft profile for LKW auxiliary drive, similar to ISO 14, with through drive
Line connections
01
Suction and pressure connection, pipe thread according to ISO 228-1
07
Suction and pressure connection, rectangular according to ISO 6162-1, metric fastening thread
20
Suction and pressure connection, square according to DIN 3901 and 3902, metric fastening thread
Mounting
U2
2-hole mounting flange according to ISO 3019-1
E4
4-hole mounting flange according to ISO 3019-2
M
2-hole mounting, centering 32 mm (size 1), centering 52 mm (size 2 and 3)
P1
2-hole mounting, centering 45,24 mm
K4
4-hole mounting flange according to ISO 7653-1985 (special version)
Option
Without
K
Cover for mounting the next frame size down
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:PGF-/V
| The following data were selected. | ||
|---|---|---|
| Typ | PG | Internal gear pump |
| Series | F | Medium pressure pump |
| - | - | |
| / | / | |
| Seal material | V | FKM shaft seal ring |
