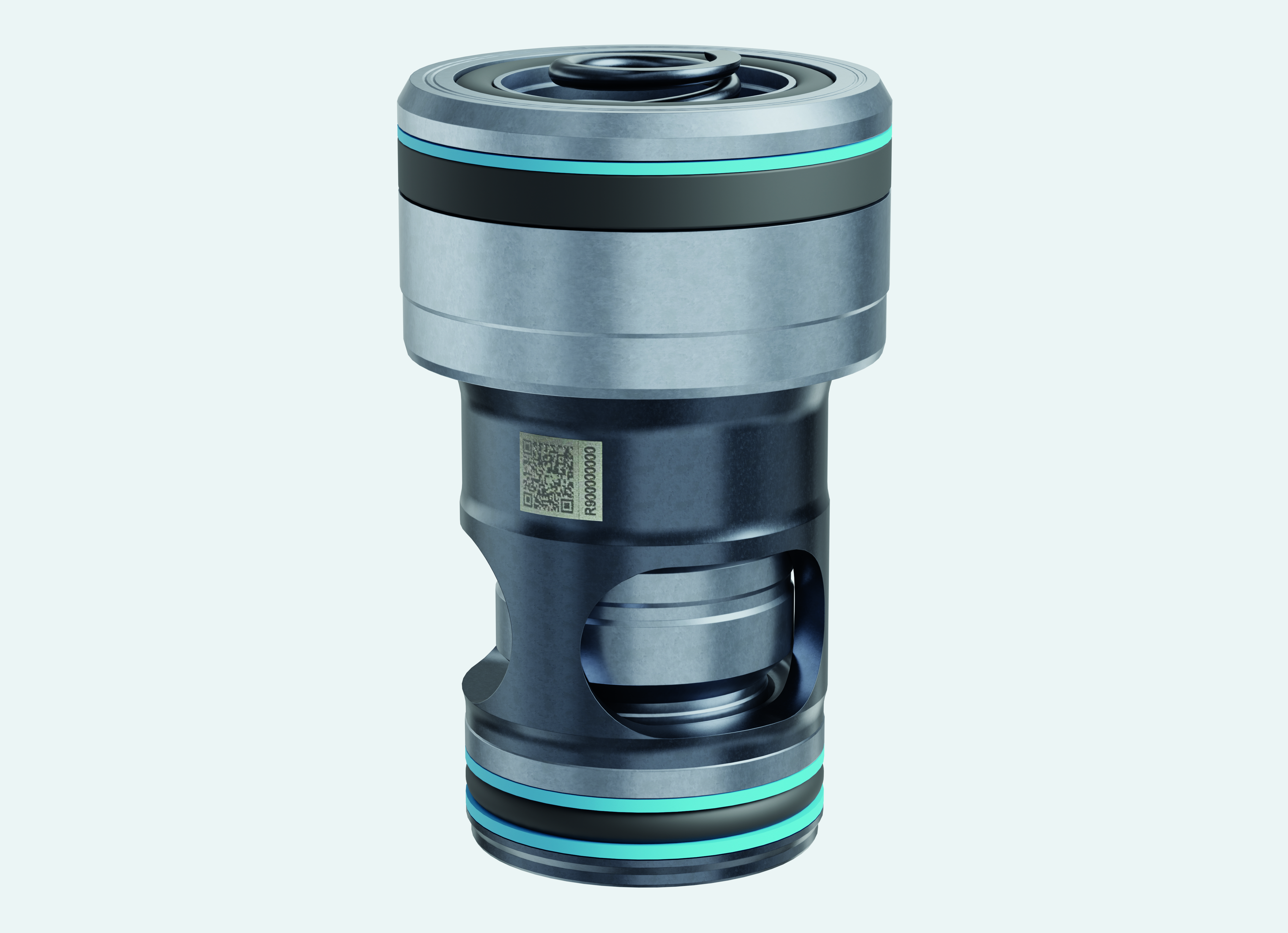

2-way cartridge valves LC
Consultation request
Type code
LC
8X
/
Result count
169 from 169
Type
Cartridge valve
LC
Cartridge valve
Size
16
Size 16
25
Size 25
32
Size 32
Control spool version
A
A1 : A2 = 2 : 1 (A2 = 50 %)
B
A1 : A2 = 14,3 : 1 (A2 = 7 %)
Cracking pressure
00
0 bar (without spring)
05
Approx. 0.5 bar (especially for anti-cavitation and check valve function)
10
Approx. 1 bar
20
Approx. 2 bar (standard)
40
Approx. 4 bar
Control spool form
D
Control spool with overlap and fine control range (version "A" only)
E
Control spool without overlap (standard)
F
Control spool with overlap (version "A" only)
Piston seal
K
With seal
L
Without seal
Series
Component series 80 … 89 (80 … 89: unchanged installation and connection dimensions)
8X
Component series 80 … 89 (80 … 89: unchanged installation and connection dimensions)
Operating pressure
420
Operating pressure 420 bar
450
Operating pressure 450 bar
Bore/orifice in control spool
None
B30
Bore from port B to spring chamber (only "LC 16 B.E")
B40
Bore from port B to spring chamber (only "LC 25 B.E")
B50
Bore from port B to spring chamber (only "LC 32 B.E")
Seal material
F
FKM seals (version "450"; only on request)
N
NBR seals (version "450"; only on request)
P
H-Ecopur (only version "450")
Special versions
-004
Installation space compatible version as replacement for "LC…7X/-004" and existing special cover
Standard
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:LC8X/
| The following data were selected. | ||
|---|---|---|
| Type | LC | Cartridge valve |
| Series | 8X | Component series 80 … 89 (80 … 89: unchanged installation and connection dimensions) |
