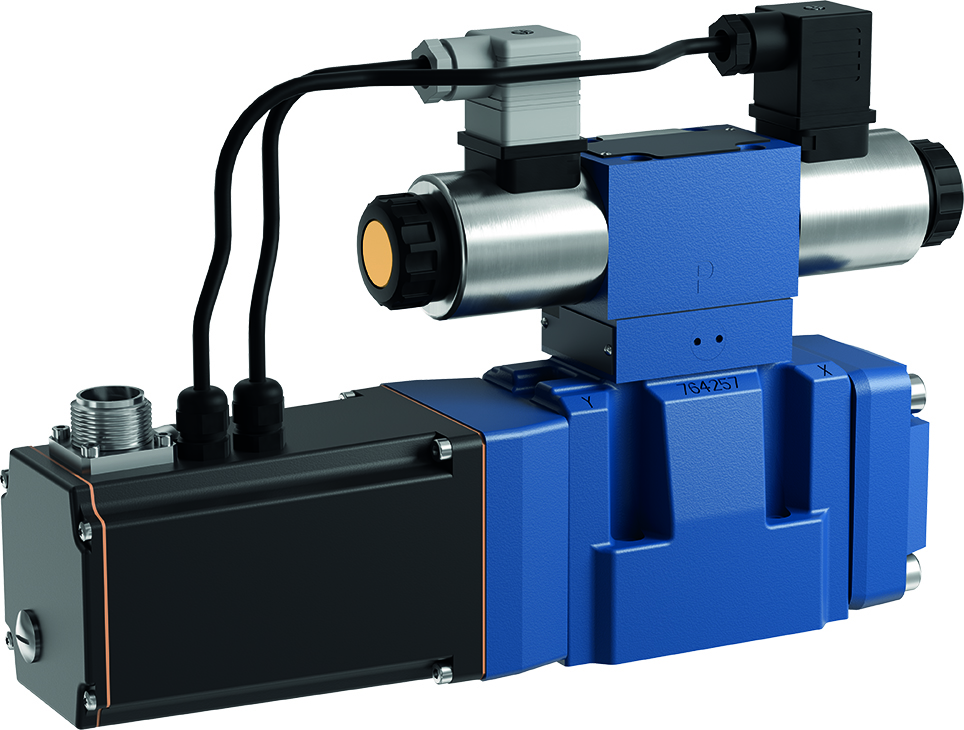

Proportional directional control valves, pilot-operated, with electrical position feedback and integrated electronics (OBE)– Type 4WRKE
Consultation request
Type code
4
WRK
E
-
3X
/
6E
G24
K31
/
D3
Result count
830 from 830
Ports
4 main ports
4
4 main ports
Type
Proportional directional control valves, pilot-operated
WRK
Proportional directional control valves, pilot-operated
Electronics
With integrated electronics (OBE)
E
With integrated electronics (OBE)
Size
10
Size 10
16
Size 16
25
Size 25
27
Size 27
32
Size 32
35
Size 35
Symbols
E
E1-
P → A: qV max, B → T: qV/2, P → B: qV/2, A → T: qV max
EA
R
P → A: qV max, B → P: qV/2, P → B: qV/2, A → T: qV max
R3-
P → A: qV max, B → P: qV/2, P → B: qV/2, A → T: qV max
W6-
W6A
W8-
P → A: qV max, B → T: qV/2, P → B: qV/2, A → T: qV max
Rated flow
25
25 l/min
50
50 l/min
100
100 l/min
150
150 l/min
220
220 l/min
350
350 l/min
400
400 l/min
500
500 l/min
600
600 l/min
1000
1000 l/min
Flow characteristic
L
Linear
P
Linear with fine control range
Component series
Component series 30 … 39
3X
Component series 30 … 39
Detachable coil
Proportional solenoid with detachable coil
6E
Proportional solenoid with detachable coil
Supply voltage
Direct voltage 24 V
G24
Direct voltage 24 V
Pilot oil flow
External pilot oil supply, external pilot oil return
E
Pilot oil supply internal, pilot oil return external
ET
Internal pilot oil supply, internal pilot oil return
T
External pilot oil supply, internal pilot oil return
Electrical connection
With connector, 7-pole (6 + PE) according to EN 175201-804
K31
With connector, 7-pole (6 + PE) according to EN 175201-804
Interfaces of the control electronics
A1
Command value input ±10 V; actual value output ±10 V
A5
Command value input ±10 V; actual value output ±10 V, enable signal (pin C)
F1
Command value input 4 ... 20 mA; actual value output 4 ... 20 mA
Pressure reducing valve
With pressure reducing valve type ZDR 6 DP0-4X/40YM-W80 (permanently set)
D3
With pressure reducing valve type ZDR 6 DP0-4X/40YM-W80 (permanently set)
Seal material
M
NBR-seals
V
FKM-seals
Additional information
-151
-151
-259
-259
-280
-280
-497
-497
-535
-535
-560
-560
-574
-574
-710
-710
-772
-772
-871
-871
-905
-905
-920
-920
-933
-933
-967
-967
-986
-986
-A62
-A62
-A78
-A78
-B08
-B08
-B17
-B17
/3
/3
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:4WRKE-3X/6EG24K31/D3
| The following data were selected. | ||
|---|---|---|
| Ports | 4 | 4 main ports |
| Type | WRK | Proportional directional control valves, pilot-operated |
| Electronics | E | With integrated electronics (OBE) |
| Component series | 3X | Component series 30 … 39 |
| Detachable coil | 6E | Proportional solenoid with detachable coil |
| Supply voltage | G24 | Direct voltage 24 V |
| Electrical connection | K31 | With connector, 7-pole (6 + PE) according to EN 175201-804 |
| Pressure reducing valve | D3 | With pressure reducing valve type ZDR 6 DP0-4X/40YM-W80 (permanently set) |
