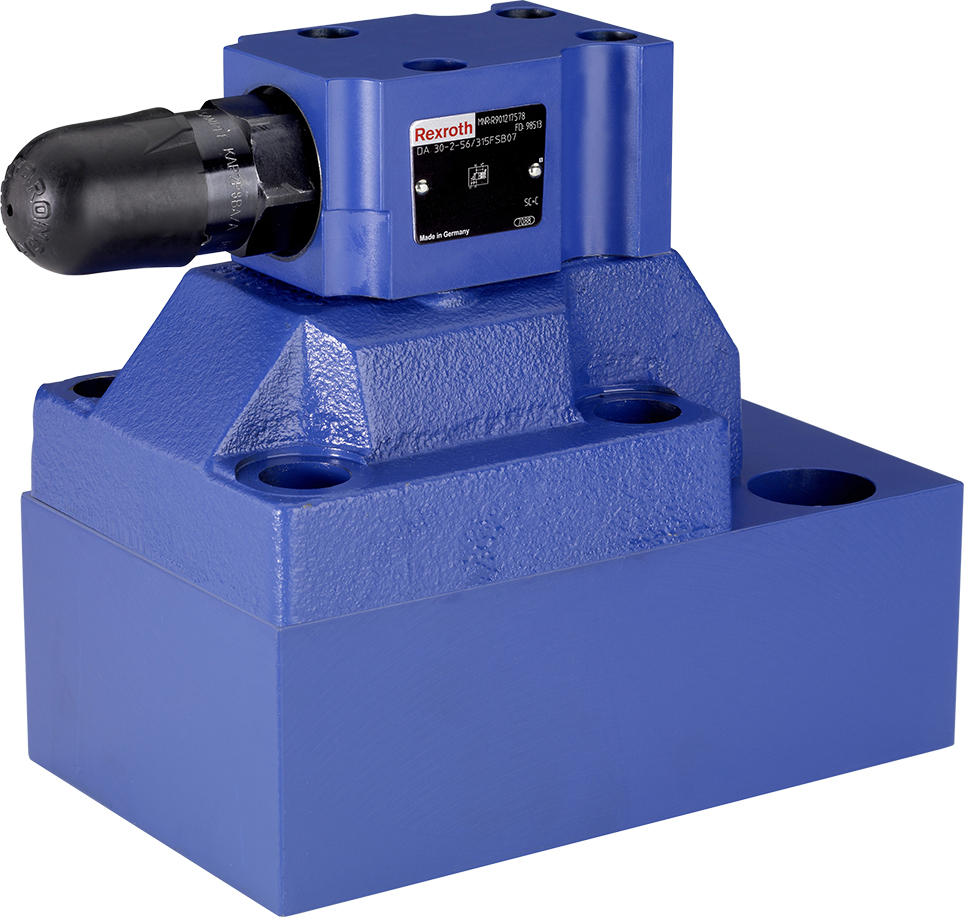

Pressure cut-off valve, pilot operated
Consultation request
Type code
DA
W
-
5X
/
-
-
6E
K4
Result count
138 from 138
Type
Pressure cut-off valve
DA
Pressure cut-off valve
Directional spool valve
With built-on directional spool valve
W
With built-on directional spool valve
Mounting
Complete valve (subplate mounting)
C
Pilot contol valve
Size
10
Size 10
20
Size 25
30
Size 32
Symbols
A
Normally closed
B
Normally open
Adjustment type
1
Rotary knob
2
Adjustment spindle with protective cap
3
Lockable rotary knob with scale
7
Rotary knob with scale
Series
Component series 50 … 59
5X
Component series 50 … 59
Pressure adjustment range
50
20 to 50 bar
100
50 to 100 bar
200
100 to 200 bar
315
200 to 315 bar
Switching pressure differential
10
On average 10 %
17
On average 17 %
Cushioning nozzle
Without nozzle
Without nozzle
Pilot oil return
Pilot oil return, internal
Pilot oil return, internal
Directional spool valve
With directional spool valve (high-power solenoid, data sheet 23178)
6E
With directional spool valve (high-power solenoid, data sheet 23178)
Supply voltage
G24
DC voltage 24 V
W230
AC voltage 230 V 50/60 Hz
Manual override
Without manual override
N
With manual override
N9
With concealed manual override
Electrical connection
Without mating connectors, with connector according to DIN EN 175301-803
K4
Without mating connectors, with connector according to DIN EN 175301-803
Seal material
NBR seals
V
FKM seals
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:DAW-5X/--6EK4
| The following data were selected. | ||
|---|---|---|
| Type | DA | Pressure cut-off valve |
| Directional spool valve | W | With built-on directional spool valve |
| Series | 5X | Component series 50 … 59 |
| Cushioning nozzle | Without nozzle | |
| Pilot oil return | Pilot oil return, internal | |
| Directional spool valve | 6E | With directional spool valve (high-power solenoid, data sheet 23178) |
| Electrical connection | K4 | Without mating connectors, with connector according to DIN EN 175301-803 |
