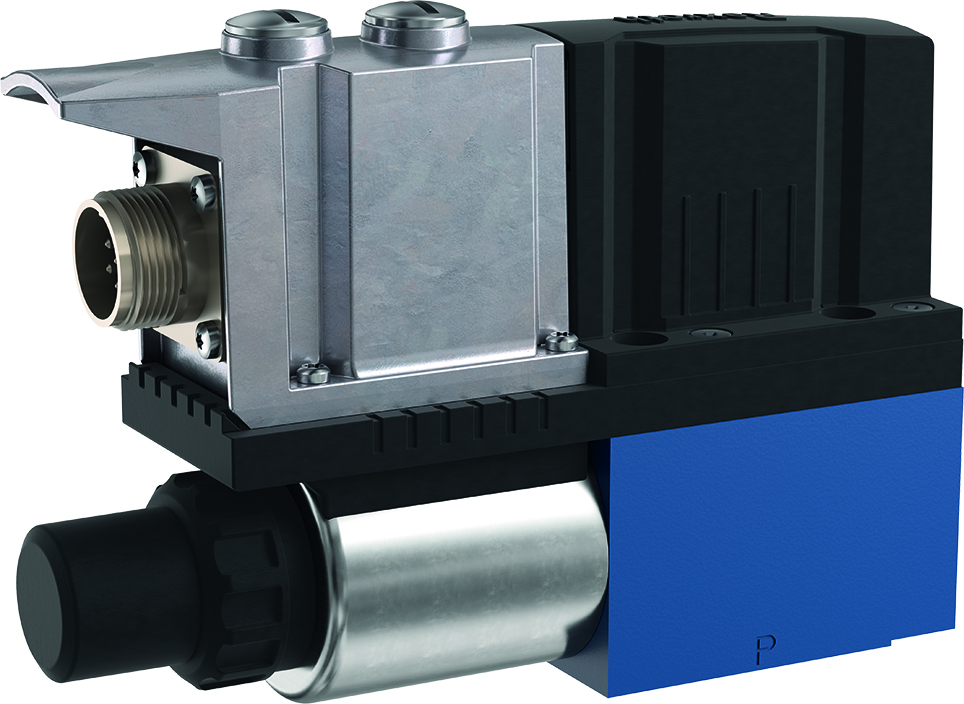

Pressure-controlled directly operated proportional pressure relief valve with integrated electronics (OBE)
Consultation request
Type code
DBETA
-
6X
/
P
G24
K31
Result count
12 from 12
Type
Pressure-controlled directly operated proportional pressure relief valve with integrated electronics (OBE)
DBETA
Pressure-controlled directly operated proportional pressure relief valve with integrated electronics (OBE)
Component series
Component series 60 to 69 (60 to 69: Unchanged installation and connection dimensions)
6X
Component series 60 to 69 (60 to 69: Unchanged installation and connection dimensions)
Pressure sensor
Pressure measurement in channel P
P
Pressure measurement in channel P
Maximum set pressure
100
Up to 100 bar
200
Up to 200 bar
350
Up to 350 bar
50
Up to 50 bar
500
Up to 500 bar (only possible in version “M”)
Supply voltage of the integrated electronics (OBE)
24 V DC voltage
G24
24 V DC voltage
Electrical connection
Connector DIN EN 175201-804
K31
Connector DIN EN 175201-804
Electronics interface
A1
Command value 0 to 10 V
F1
Command value 4 to 20 mA
Attention: Observe compatibility of seals with hydraulic fluid used! (Other seals upon request)
M
NBR seals
V
FKM seals
Additional information
-4
-4
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:DBETA-6X/PG24K31
| The following data were selected. | ||
|---|---|---|
| Type | DBETA | Pressure-controlled directly operated proportional pressure relief valve with integrated electronics (OBE) |
| Component series | 6X | Component series 60 to 69 (60 to 69: Unchanged installation and connection dimensions) |
| Pressure sensor | P | Pressure measurement in channel P |
| Supply voltage of the integrated electronics (OBE) | G24 | 24 V DC voltage |
| Electrical connection | K31 | Connector DIN EN 175201-804 |
