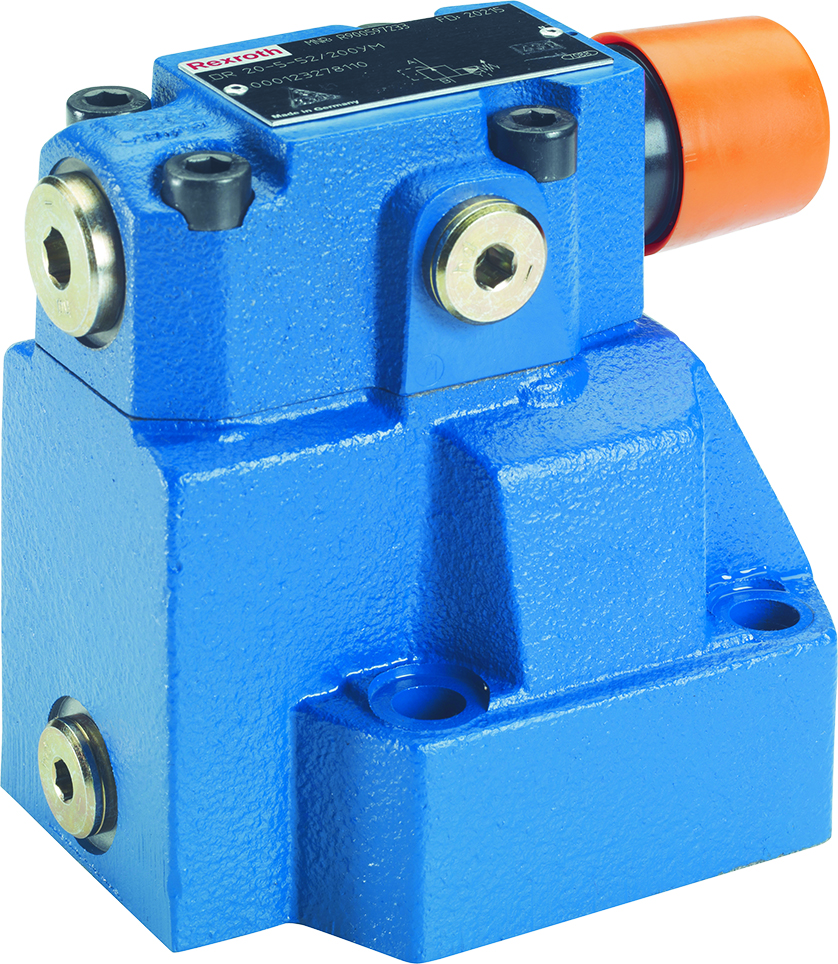

Pressure reducing valve, pilot-operated
Consultation request
Type code
DR
-
5X
/
Y
Result count
306 from 306
Type
Pressure reducing valve, pilot-operated
DR
Pressure reducing valve, pilot-operated
Valve
Valve complete (subplate mounting or threaded connection)
C
Pilot control valve without main spool insert (cartridge valve; do not enter any size)
Size
10
Size 10
15
Size 16
20
Size 25
25
Size 25
30
Size 32
Function
-
As cartridge valve (version "C30", with main spool insert)
G
For threaded connection
Adjustment type
4
Rotary knob
5
Sleeve with hexagon and protective cap
6
Lockable rotary knob with scale
7
Rotary knob with scale
Series
Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)
5X
Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions)
Set pressure
50
Up to 50 bar
100
Up to 100 bar
200
Up to 200 bar
315
Up to 315 bar
350
Up to 350 bar (only version "M")
Pilot oil supply
Internal pilot oil supply, external pilot oil return
Y
Internal pilot oil supply, external pilot oil return
Check valve
With check valve (for subplate mounting only)
M
Without check valve
Corrosion resistance
None
J3
Improved corrosion protection (240 h salt spray test according to EN ISO 9227); (only version "5")
Seal material
NBR seals
V
FKM seals
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:DR-5X/Y
| The following data were selected. | ||
|---|---|---|
| Type | DR | Pressure reducing valve, pilot-operated |
| Series | 5X | Component series 50 … 59 (50 … 59: unchanged installation and connection dimensions) |
| Pilot oil supply | Y | Internal pilot oil supply, external pilot oil return |
