Check valve Z1S6
Consultation request
Type code
Z1S
6
-
4X
/
V
Result count
58 from 58
Type
Check valve, sandwich plate
Z1S
Check valve, sandwich plate
Nominal size
Nominal size 6
6
Nominal size 6

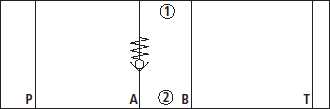

(① = component side, ② = plate side)
A
A (A2 → A1)

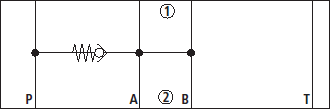

AB-P
AB → P

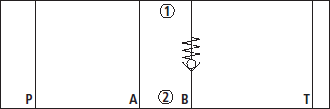

B
B (B2 → B1)

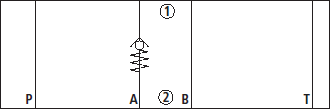

C
A (A1 → A2)

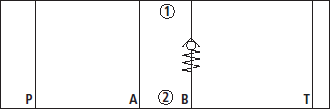

D
B (B1 → B2)

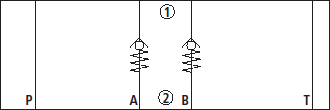

E
A und B (A1 → A2) und (B1 → B2)

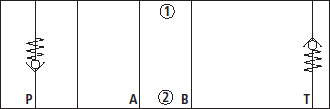

F
P und T (P2 → P1) und (T1 → T2)

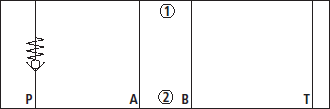

P
P (P2 → P1)

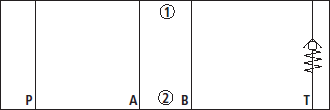

T
T (T1 → T2)
Cracking pressure
05
0.5 bar
15
1.5 bar
30
3.0 bar
50
5.0 bar
Series
Series 40 … 49
4X
Series 40 … 49
Observe compatibility of seals with hydraulic fluid used. (Other seals upon request)
FKM seals
V
FKM seals
(outside; thick film passivated according to DIN 50979 Fe//Zn8//Cn//T0)
None (valve housing primed)
J3
Improved corrosion protection (240 h salt spray test according to EN ISO 9227)
Locating hole
Without locating hole
/60
With locating hole
/62
With locating hole and locking pin ISO 8752-3x8-St
Special version
Standard version
SO104
Direction of flow P1 → P2 (opposite to version “P”)
SO68
Measuring port in P (G1/4; on channel B side)
SO90
Measuring ports A and B (G¼)
Additional details
SO107
SO107
SO119
SO119
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:Z1S6-4X/V
| The following data were selected. | ||
|---|---|---|
| Type | Z1S | Check valve, sandwich plate |
| Nominal size | 6 | Nominal size 6 |
| Series | 4X | Series 40 … 49 |
| Observe compatibility of seals with hydraulic fluid used. (Other seals upon request) | V | FKM seals |
