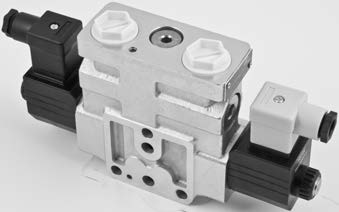

Compact Directional Valve EDC-Z
Consultation request
Type code
L
8
5
10
0
4/3 and 4/2 on-off directional valve elements with flow sharing control (LUDV concept)
- Size 6
- Maximum pressure (pump side) 310 bar (4500 psi)
- Maximum flow at 14 bar (206psi) 23.5 l/min (6.2 gpm)
- Maximum flow at 18 bar (261psi) 26.5 l/min (7 gpm)
- Ports connections G 1/2 - SAE8 and Modular
Display results list
Result count
249 from 249
Family
Directional Valve elements ED
L
Directional Valve elements ED
Configuration
Flow sharing
5
Flow sharing
Coil Type
C36
10
C36
Spool variant

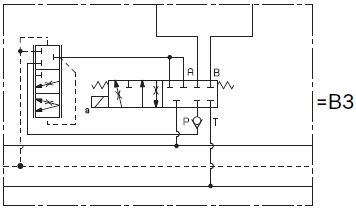

B3
4/2 operated on side a only; P, A, B, T closed in neutral

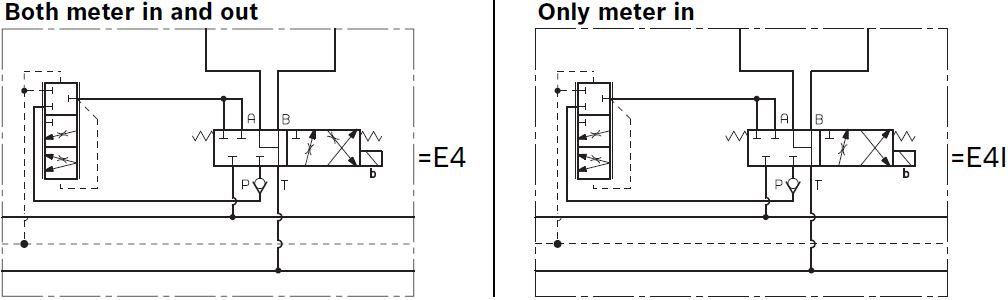

E4
4/3 operated on side b only; P closed; A and B to T in neutral

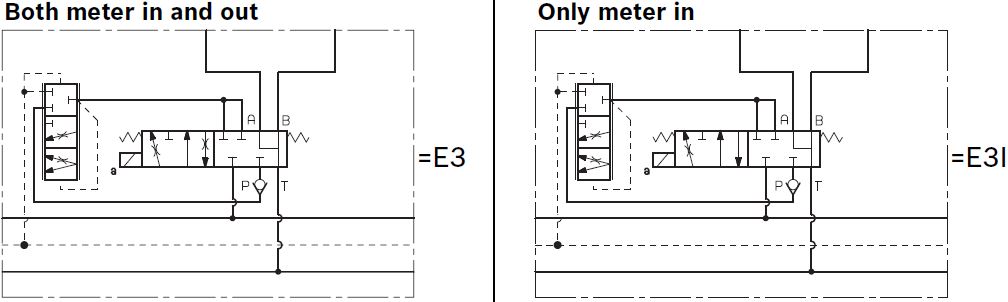

E3
4/3 operated on side a only; P closed; A and B to T in neutral

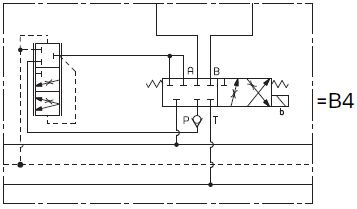

B4
4/2 operated on side b only; P, A, B, T closed in neutral

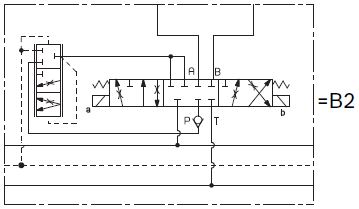

B2
4/3 operated both sides a and b; P, A, B, T closed in neutral

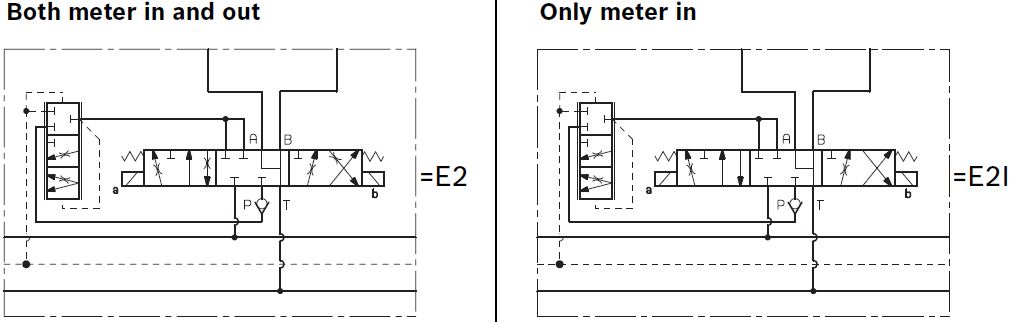

E2
4/3 operated on both sides a and b; P closed; A and B to T in neutral
Flow pattern & Nominal flow
I1
Only meter in, A 6l/min(1.59gpm) - B 6l/min(1.59gpm)
I2
Only meter in, A 6l/min(1.59gpm) - B 6l/min(1.59gpm)
I4
Only meter in, A 23.5l/min(6.21gpm) - B 23.5l/min(6.21gpm)
S0
Both meter in and out, A 3l/min(0.79gpm) - B 3l/min(0.79gpm)
S1
Both meter in and out, A 6l/min(1.59gpm) - B 6l/min(1.59gpm)
S2
Both meter in and out, A 9l/min(2.37gpm) - B 9l/min(2.37gpm)
S3
Both meter in and out, A 13l/min(3.43gpm) - B 13l/min(3.43gpm)
S4
Both meter in and out, A 23.5l/min(6.21gpm) - B 23.5l/min(6.21gpm)
01
Both meter in and out, A 3l/min(0.79gpm) - B 6l/min(1.59gpm)
12
Both meter in and out, A 6l/min(1.59gpm) - B 9l/min(2.37gpm)
13
Both meter in and out, A 6l/min(1.59gpm) - B 13l/min(3.43gpm)
23
Both meter in and out, A 9l/min(2.37gpm) - B 13l/min(3.23gpm)
34
Both meter in and out, A 13l/min(3.43gpm) - B 23.5l/min(6.21gpm)

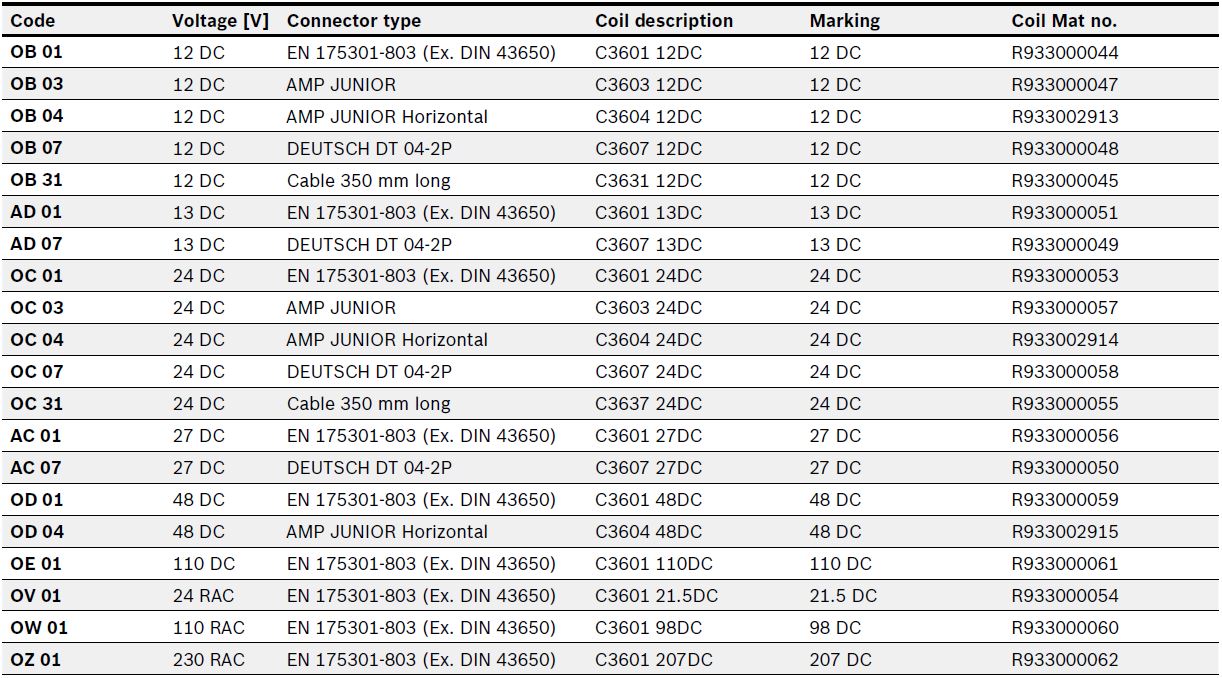

Voltage supply
00
Without coil
AC
24V DC
AD
13V DC
OB
12V DC
OC
24V DC
OD
48V DC
Electric connections

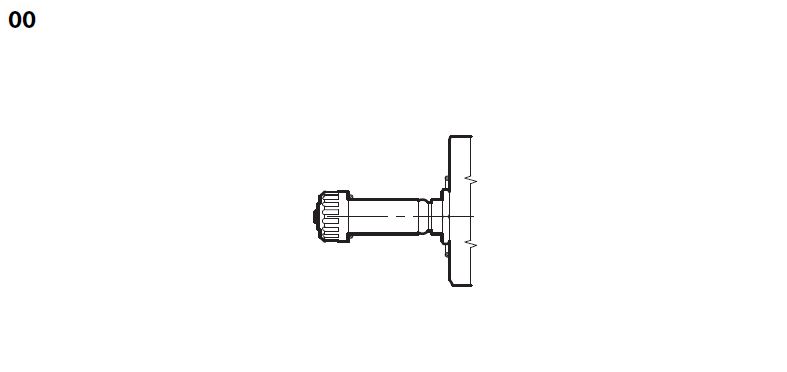

00
Without coils

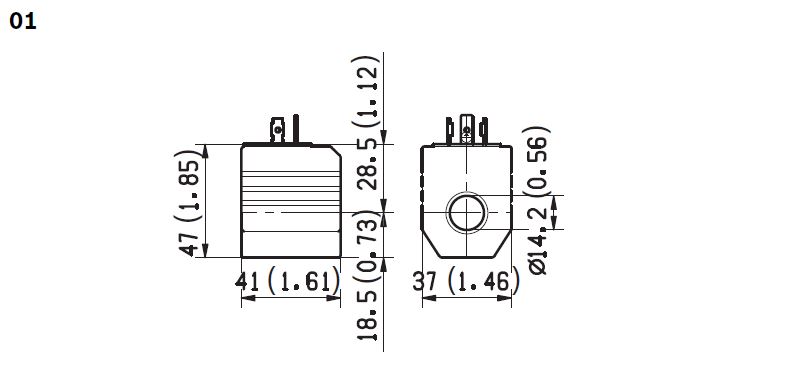

01
DIN 43650

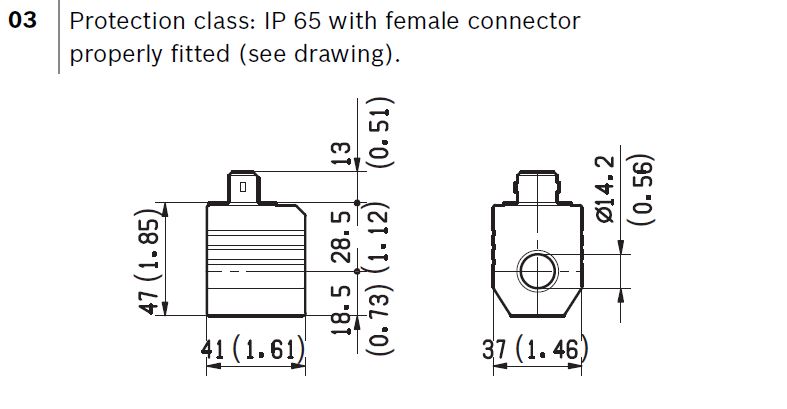

03
AMP JUNIOR vertical

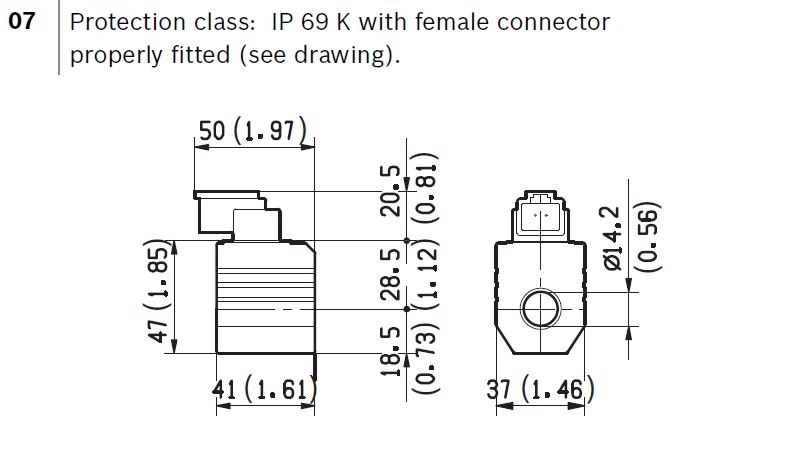

07
DEUTSCH DT 04-2P
Ports
M
Machined for interfacing to modular elements
0

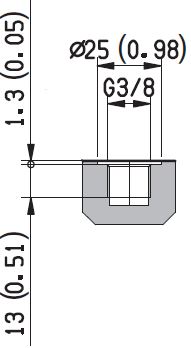

G 3/8 DIN 3852
3
3/4-16 UNF 2-B (SAE8)
Options

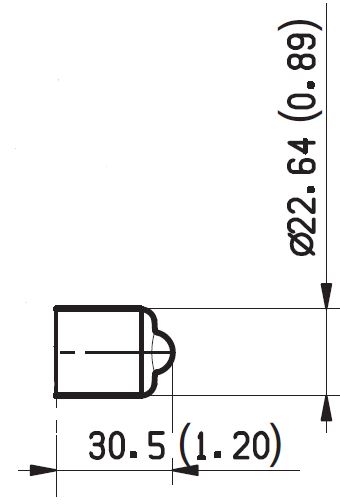

00
Without manual override

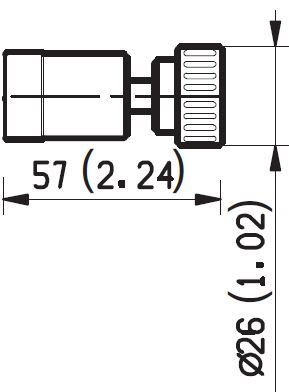

0F
Screw type manual override
0P
Push-button type manual override

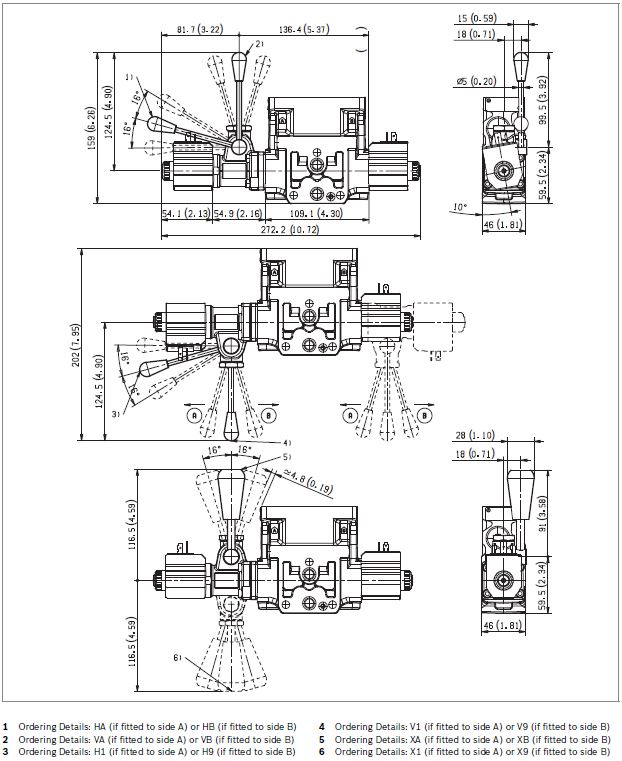

H1
Lever type manual override
HA
Lever type manual override
HB
Lever type manual override
V1
Lever type manual override
VA
Lever type manual override
VB
Lever type manual override
X1
Lever type manual override
XA
Lever type manual override
XB
Lever type manual override
Documentation
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:L85100
| The following data were selected. |
|---|
