Compact Directional Valve EDC-P1
Consultation request
Type code
L
8
5
81
0

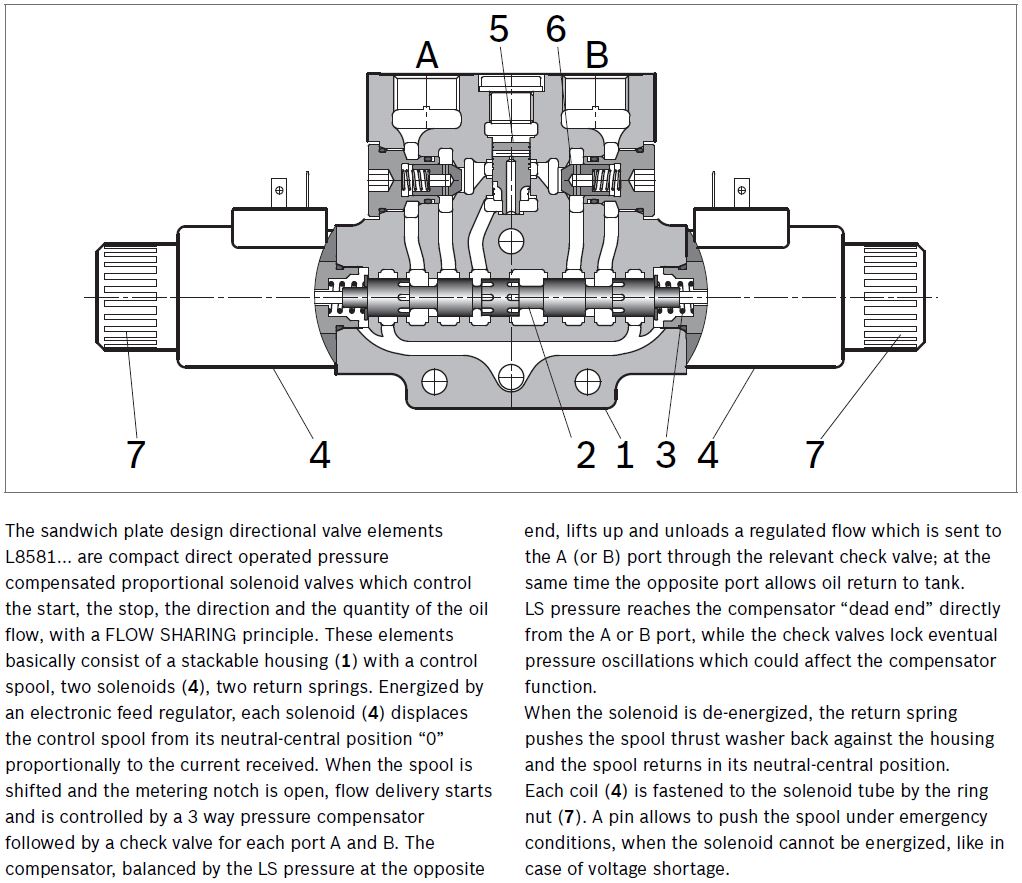

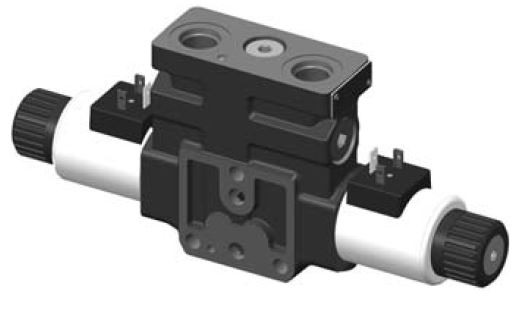

4/3 and 4/2 proportional directional valve elements with flow sharing control (LUDV concept)
- Size 6
- Maximum pressure (pump side) 310 bar (4500 psi)
- Maximum flow at 14 bar (203 psi) 59 l/min (15.59 gpm)
- Maximum fl ow at 18 bar (261 psi) 65 l/min (17.17 gpm)
- Ports connections G 1/2 - SAE8 and Modular
Display results list
Result count
842 from 842
Family
Directional Valve elements ED
L
Directional Valve elements ED
Configuration
Flow Sharing
5
Flow Sharing
Coil Type
GP45
81
GP45
Spool variant
B4
4/2 operated on side a only; P, A, B, T closed in neutral
E4
4/3 operated on both sides a and b; P closed; A and B to T in neutral
E3
4/3 operated on both sides a and b; P closed; A and B to T in neutral
B3
4/2 operated on side a only; P, A, B, T closed in neutral
B2
4/3 operated both sides a and b; P, A, B, T closed in neutral
E2
4/3 operated on both sides a and b; P closed; A and B to T in neutral
Flow pattern & Nominal flow
01
Both meter in and out, A 4l/min(1.06gpm) - B 8l/min(1.85gpm)
12
Both meter in and out, A 8l/min(1.85gpm) - B 12l/min(3.17gpm)
13
Both meter in and out, A 8l/min(1.85gpm) - B 16l/min(4.23gpm)
23
Both meter in and out, A 12l/min(3.17gpm) - B 16l/min(4.23gpm)
24
Both meter in and out, A 12l/min(3.17gpm) - B 25l/min(6.6gpm)
34
Both meter in and out, A 16l/min(4.23gpm) - B 25l/min(6.6gpm)
38
Both meter in and out, A 16l/min(4.23gpm) - B 25l/min(6.6gpm)
48
Both meter in and out, A 16l/min(4.23gpm) - B 25l/min(6.6gpm)
49
Both meter in and out, A 25l/min(6.6gpm) - B 50l/min(13.2gpm)
89
Both meter in and out, A 40l/min(10.57gpm) - B 50l/min(13.2gpm)
I1
Only meter in, A 8l/min(1.85gpm) - B 8l/min(1.85gpm)
I2
Only meter in, A 12l/min(3.17gpm) - B 12l/min(3.17gpm)
I4
Only meter in, A 25l/min(6.6gpm) - B 25l/min(6.6gpm)
I8
Only meter in, A 40l/min(10.57gpm) - B 40l/min(10.57gpm)
I9
Only meter in, A 50l/min(13.2gpm) - B 50l/min(13.2gpm)
IZ
Only meter in, A 59l/min(15.59gpm) - B 59l/min(15.59gpm)
S0
Both meter in and out, A 4l/min(1.06gpm) - B 4l/min(1.06gpm)
S1
Both meter in and out, A 8l/min(1.85gpm) - B 8l/min(1.85gpm)
S2
Both meter in and out, A 12l/min(3.17gpm) - B 12l/min(3.17gpm)
S3
Both meter in and out, A 16l/min(4.23gpm) - B 16l/min(4.23gpm)
S4
Both meter in and out, A 25l/min(6.6gpm) - B 25l/min(6.6gpm)
S8
Both meter in and out, A 40l/min(10.57gpm) - B 40l/min(10.57gpm)
S9
Both meter in and out, A 50l/min(13.2gpm) - B 50l/min(13.2gpm)
Voltage supply
00
Without coil
OB

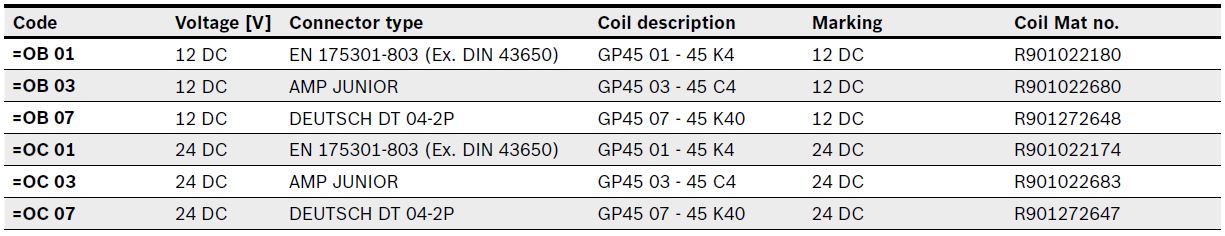

12V DC
OC
24V DC
Electric connections
00
Without coils
01

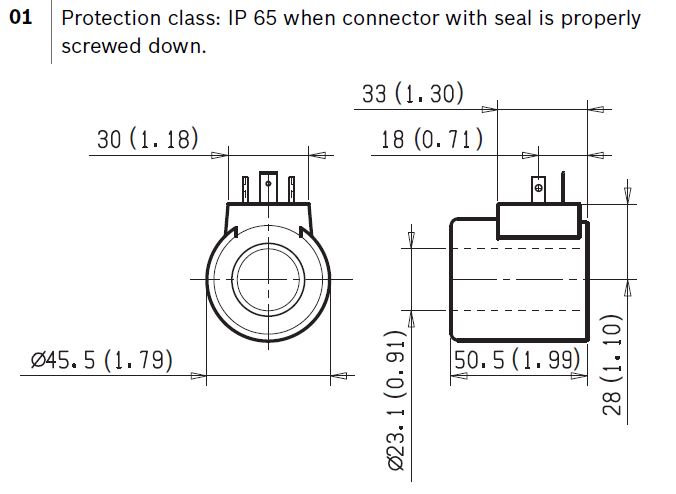

DIN 43650
03
AMP JUNIOR
07

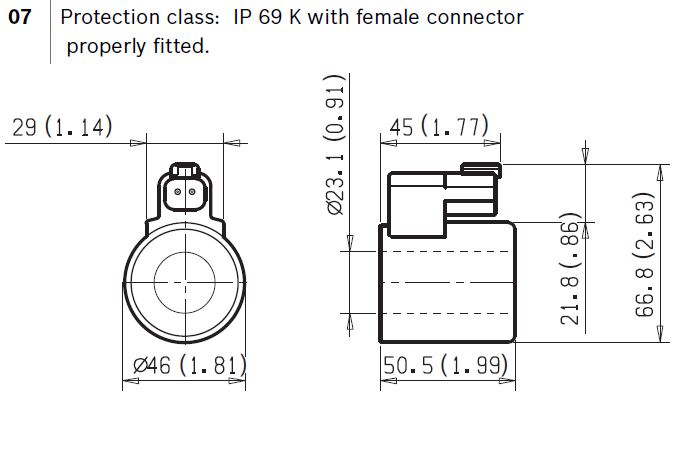

DEUTSCH DT 04-2P
Ports
0

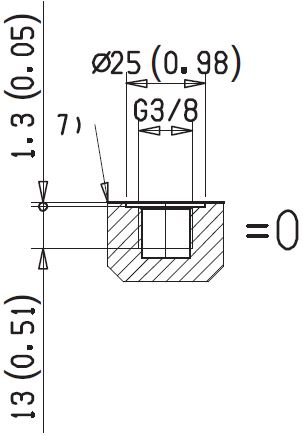

G 3/8 DIN 3852
M
Machined to interface modular elements
2

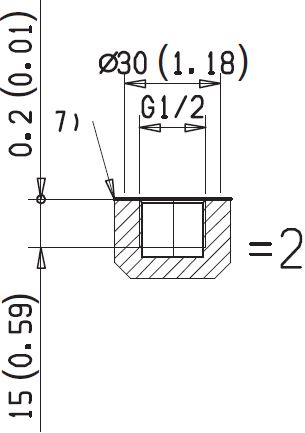

G 1/2 DIN 3852
3

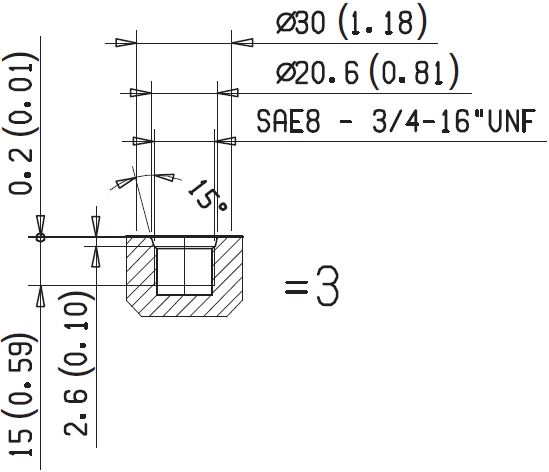

3/4-16 UNF 2-B (SAE8)
Override options
00
No options
0F

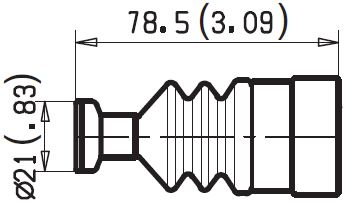

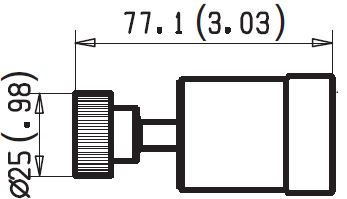

Screw type manual override
0P
Push-button type manual override
0T

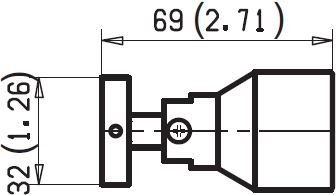

Twist type manual override (180°)
H1
Ordering Details: H1 (if fitted to side A)
H9
Ordering Details: H9 (if fitted to side B)
HA
Ordering Details: HA (if fitted to side A)
HB
Ordering Details: HB (if fitted to side B)
RP
Red push-button type manual override
V1
Ordering Details: V1 (if fitted to side A)
V9
Ordering Details: V9 (if fitted to side B)
VA
Ordering Details: VB (if fitted to side B)
X1
Ordering Details: X1 (if fitted to side A)
X9
Ordering Details: X9 (if fitted to side B)
XA
Ordering Details: XA (if fitted to side A)
XB
Ordering Details: XB (if fitted to side B)
Documentation
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:L85810
| The following data were selected. |
|---|
