Compact Directional Valve EDC-DZ
Consultation request
Type code
L
8
5
11
0
4/3 and 4/2 on-off directional valve elements with flow sharing control (LUDV concept)
- Size 6
- Maximum pressure (pump side) 310 bar (4500 psi)
- Maximum flow at 14 bar (206psi) 48 l/min (12.7 gpm)
- Maximum fl ow at 18 bar (261psi) 54 l/min (15.3 gpm)
- Ports connections G 1/2 - SAE8 and Modular
Display results list
Result count
94 from 94
Family
Directional Valve elements ED
L
Directional Valve elements ED
Configuration
Flow Sharing
5
Flow Sharing
Coil Type
C45
11
C45
Spool variant

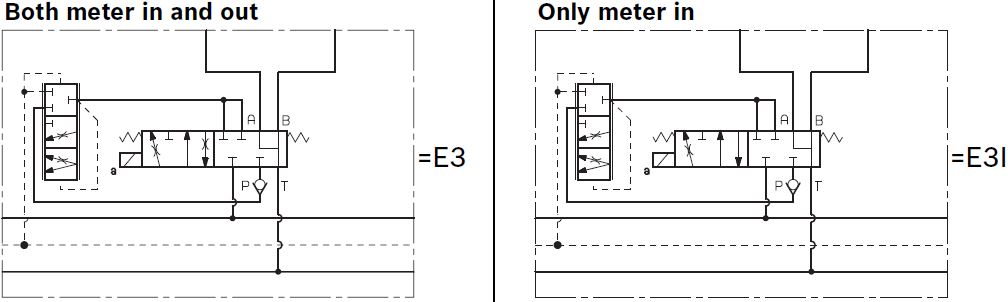

E3
4/3 operated on both sides a and b; P closed; A and B to T in neutral

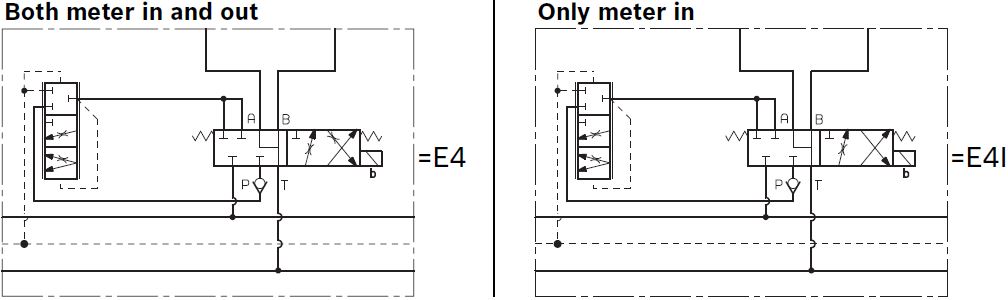

E4
4/3 operated on both sides a and b; P closed; A and B to T in neutral

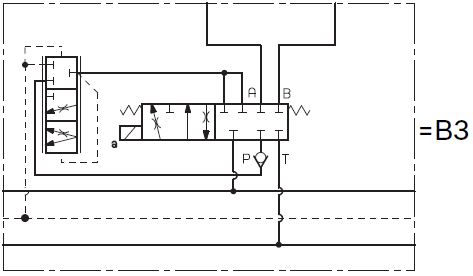

B3
4/2 operated on side a only; P, A, B, T closed in neutral

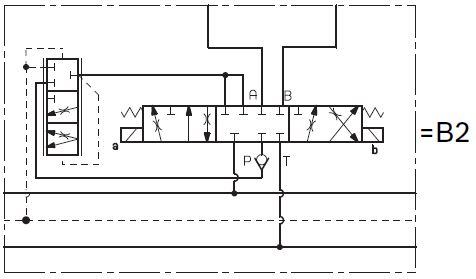

B2
4/3 operated both sides a and b; P, A, B, T closed in neutral

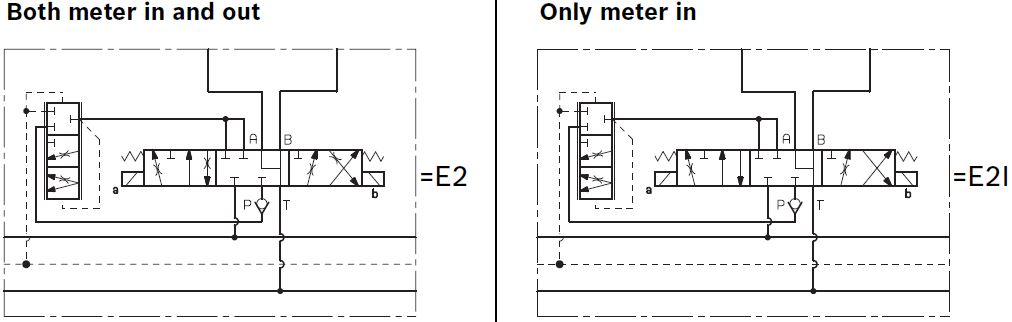

E2
4/3 operated on both sides a and b; P closed; A and B to T in neutral
Flow pattern & Nominal flow
38
Both meter in and out, A 15l/min(3.9gpm) - B 35l/min(9.25gpm) - for E spool only
48
Both meter in and out, A 24l/min(6.3gpm) - B 35l/min(9.25gpm) - for E spool only
49
Both meter in and out, A 24l/min(6.3gpm) - B 48l/min(12.7gpm) - for E spool only
I8
Only meter in, A 35l/min(9.25gpm) - B 35l/min(9.25gpm) - for E spool only
I9
Only meter in, A 48l/min(12.7gpm) - B 48l/min(12.7gpm) - for E spool only
S8
Both meter in and out, A 35l/min(9.25gpm) - B 35l/min(9.25gpm)
S9
Both meter in and out, A 48l/min(12.7gpm) - B 48l/min(12.7gpm)

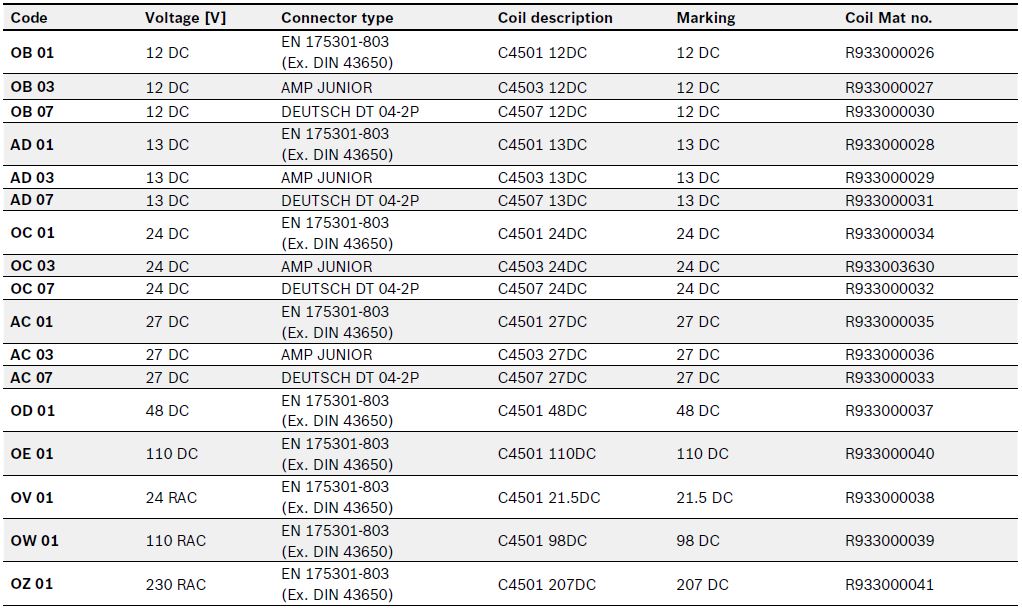

Voltage supply
00
Without coil
AC
27V DC
AD
13V DC
OB
12V DC
OC
24V DC
Electric connections
00
Without coils

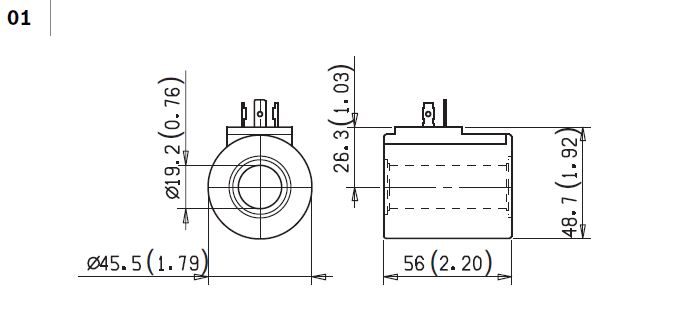

01
DIN 43650

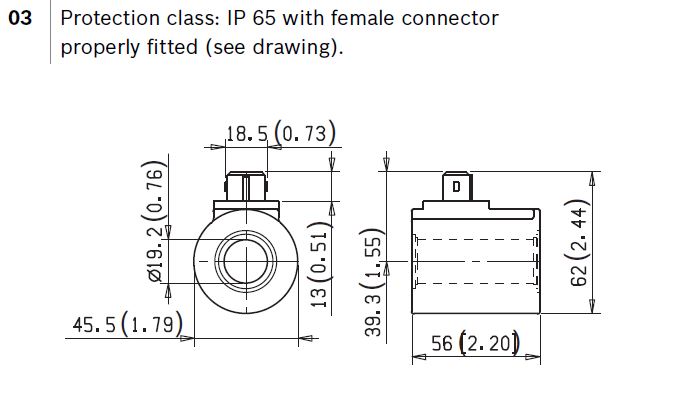

03
AMP JUNIOR

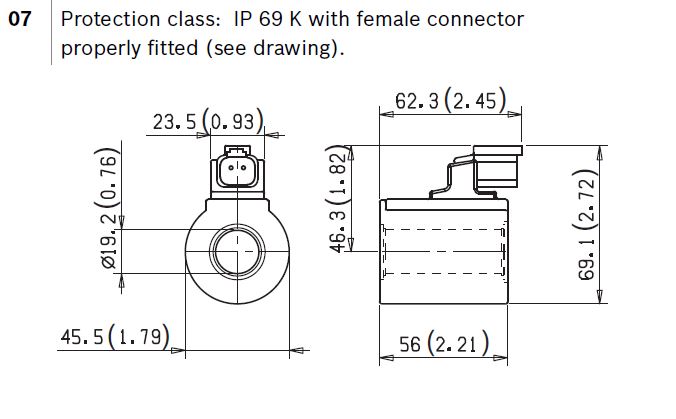

07
DEUTSCH DT 04-2P

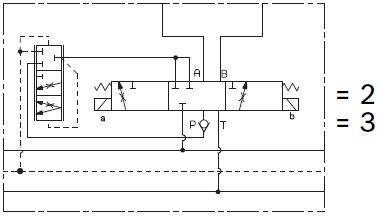

Ports

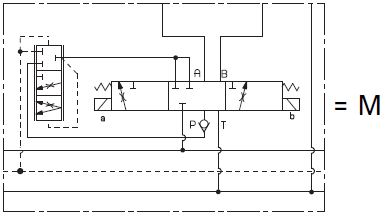

M
Flangeable (A-B-T)
2
G 1/2 DIN 3852
3
3/4-16 UNF 2-B (SAE8)
Override options

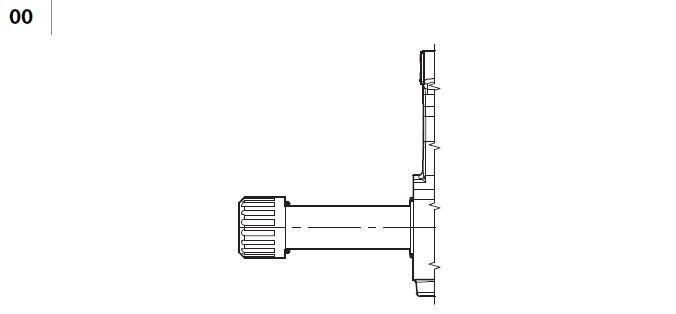

00
No options

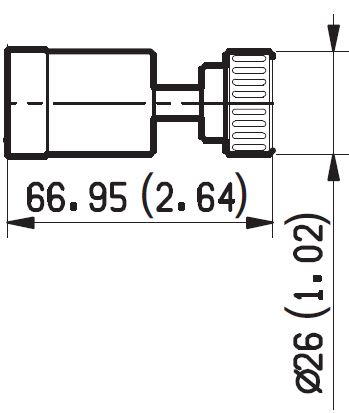

0F
Screw type manual override

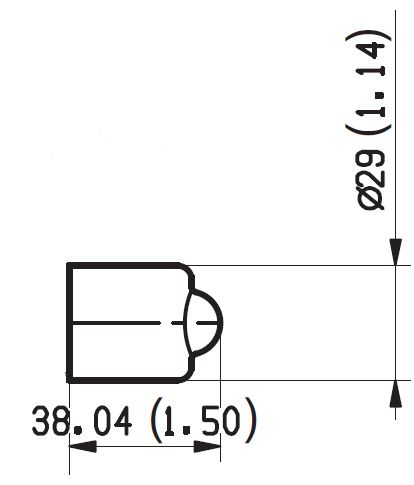

0P
Push-button type manual override
H1
Ordering Details: H1 (if fitted to side A)
HA
Ordering Details: HA (if fitted to side A)
X1
Ordering Details: X1 (if fitted to side A)
XA
Ordering Details: XA (if fitted to side A)
Documentation
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:L85110
| The following data were selected. |
|---|
