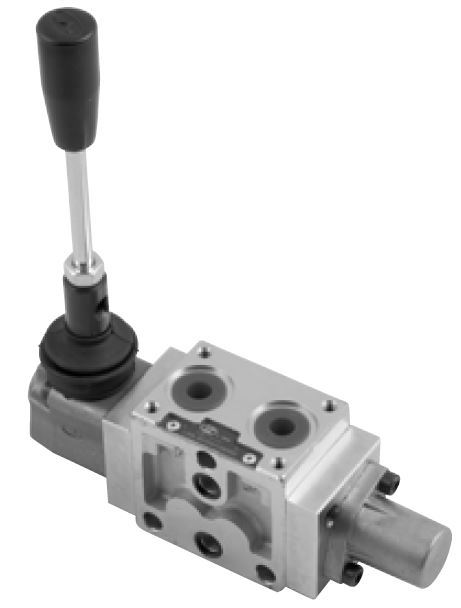

Compact Directional Valve ED-LV
Consultation request
Type code
L
8
L1
S
4/3 Directional valve elements with manual lever operated control and with or without LS connections
- Size 6
- Series 00
- Maximum operating pressure 310 bar (4500 psi)
- Maximum flow 60 l/min (15.8 gpm)
- Port connections G 3/8 - SAE6 - G 1/2 - SAE8
Display results list
Result count
72 from 72
Family

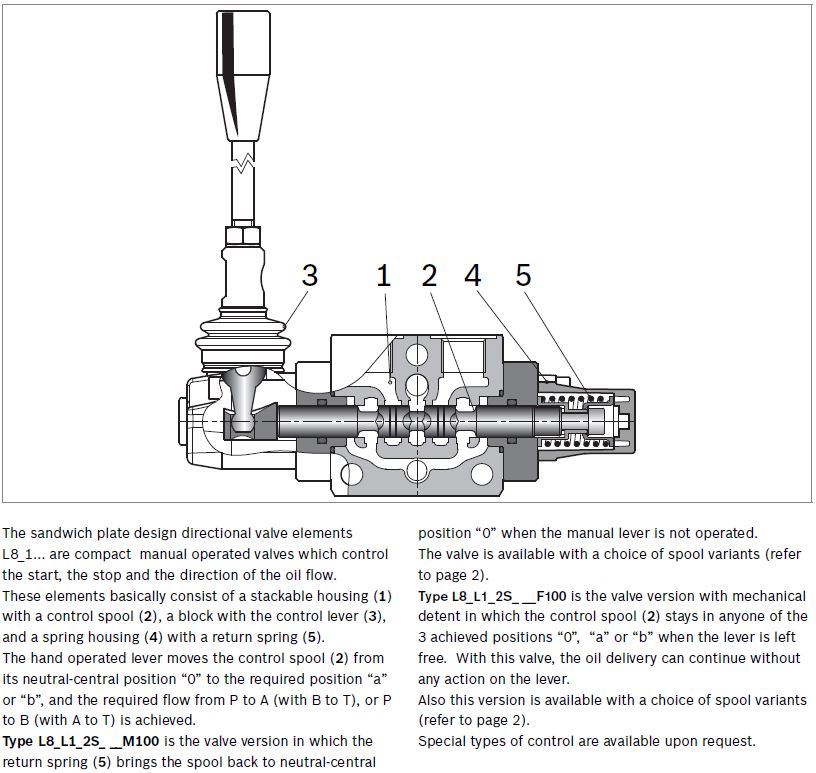

Directional Valve elements ED
L
Directional Valve elements ED
Configuration
0

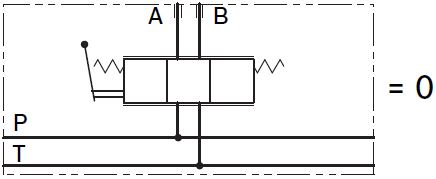

Standard
4

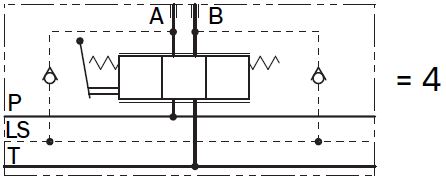

With Load Sensing Control
Spool variant
E2
E2 spool
A2
A2 spool
B2
B2 spool
Nominal flow
4
18 l/min (5.75 gpm) for B_, E_ spool variants.
8
40 l/min (10.6 gpm)
Side with the control lever
B0
b side with handle aiming high (A and B direction)
B2
b side with handle aiming low (opposite to A and B)
A2
a side with handle aiming low (opposite to A and B)
A0
a side with handle aiming high (A and B direction)
Manual lever control
F1
With mechanical detent for all three positions
M1
With return spring
Ports
0

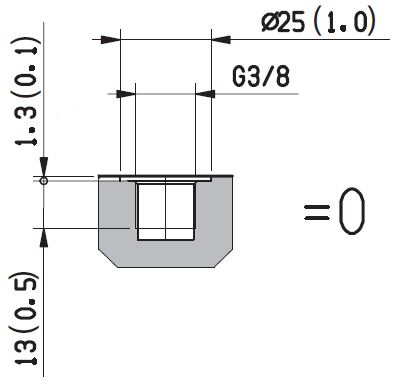

G 3/8 DIN 3852
2

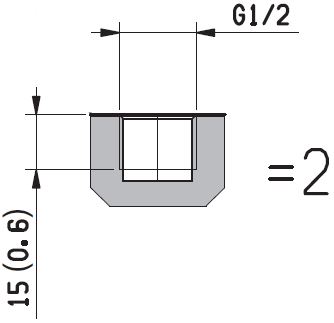

G 1/2 DIN 3852
3

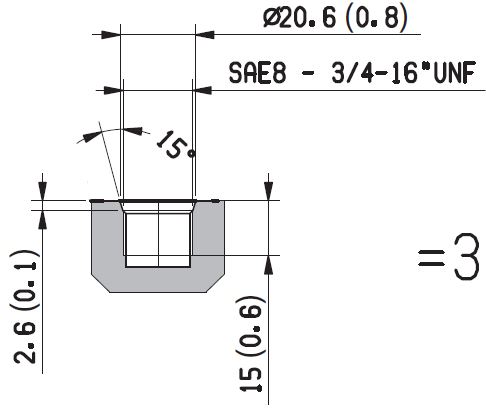

3/4-16 UNF 2-B (SAE8)
Documentation
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:L8L1S
Material number:
| The following data were selected. |
|---|
