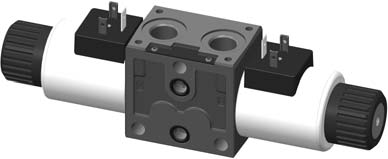

Compact Directional Valve ED4-P1
Consultation request
Type code
L
8
81
4/3 and 4/2 directional valve elements with proportional control and with or without LS connections
- Size 6
- Series 00
- Maximum operating pressure 310 bar (4500 psi)
- Maximum flow 40 l/min (10.5 gpm)
- Port connections G 3/8 - SAE6 - G 1/2 - SAE8
Display results list
Result count
114 from 114
Family

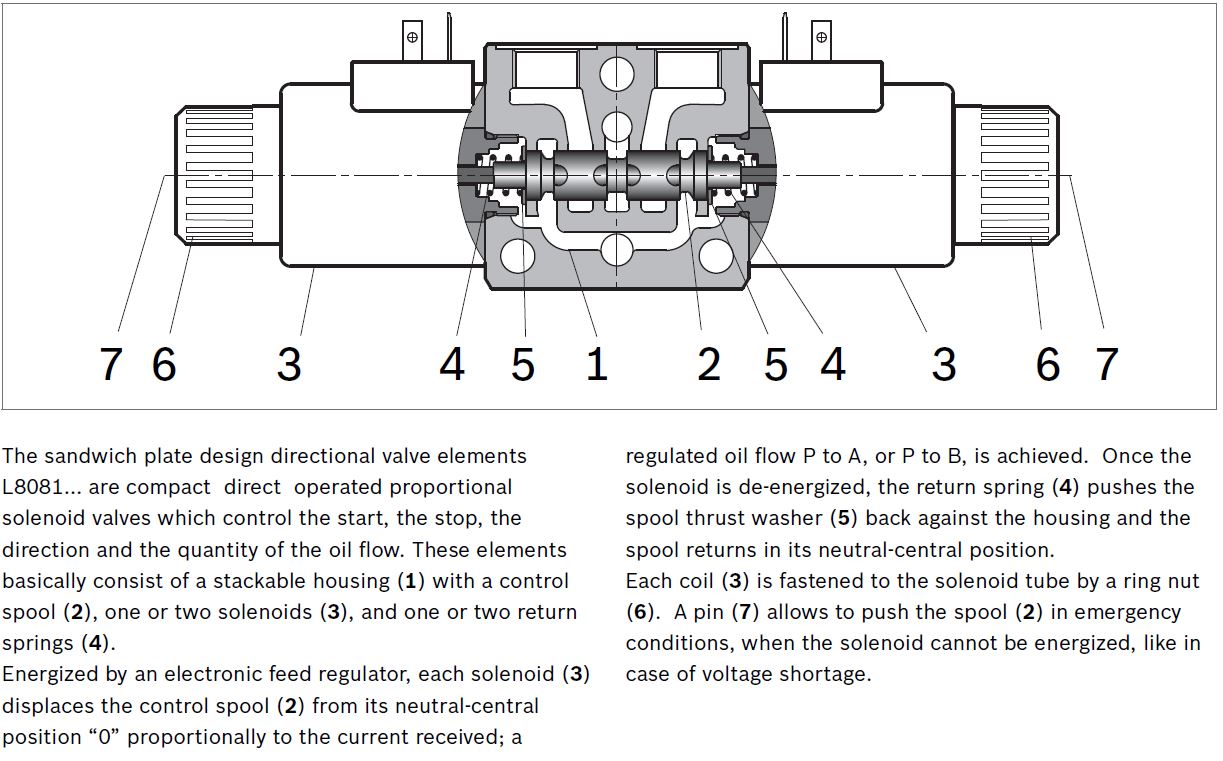

Directional Valve elements ED
L
Directional Valve elements ED

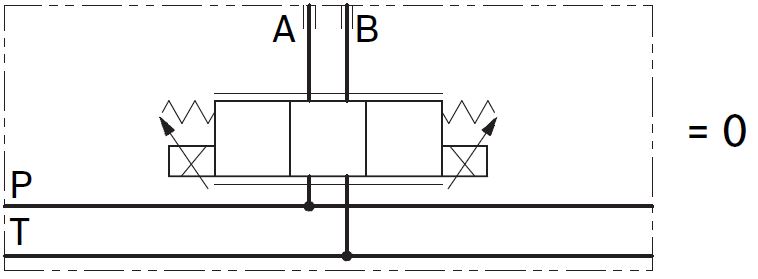

Configuration
0
Standard
4

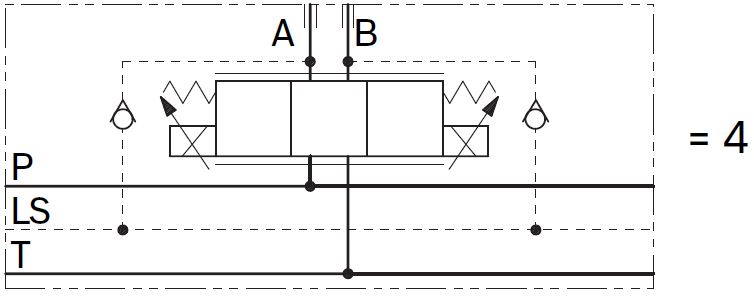

With Load Sensing control
Coil Type
GP45
81
GP45
Spool variant
E3
4/2 operated on side a only; A and B to T in neutral
E4
4/2 operated on side b only; A and B to T in neutral
B4
4/2 operated on side b only; P – T closed in neutral

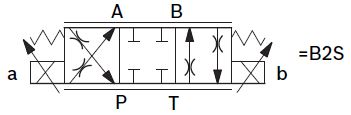

B2
4/3 operated both sides a and b; P – T closed in neutral

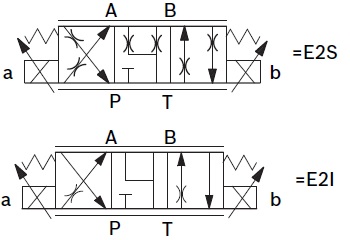

E2
4/3 operated on both sides a and b; A and B to T in neutral
Flow pattern
I

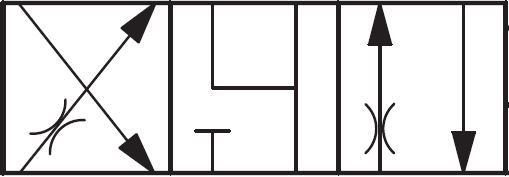

Meter in
S

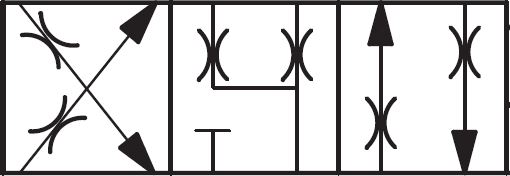

Both meter in and out
Nominal flow
2
10 l/min (2.64 gpm)
4
20 l/min (5.28 gpm)
6
30 l/min (7.9 gpm)

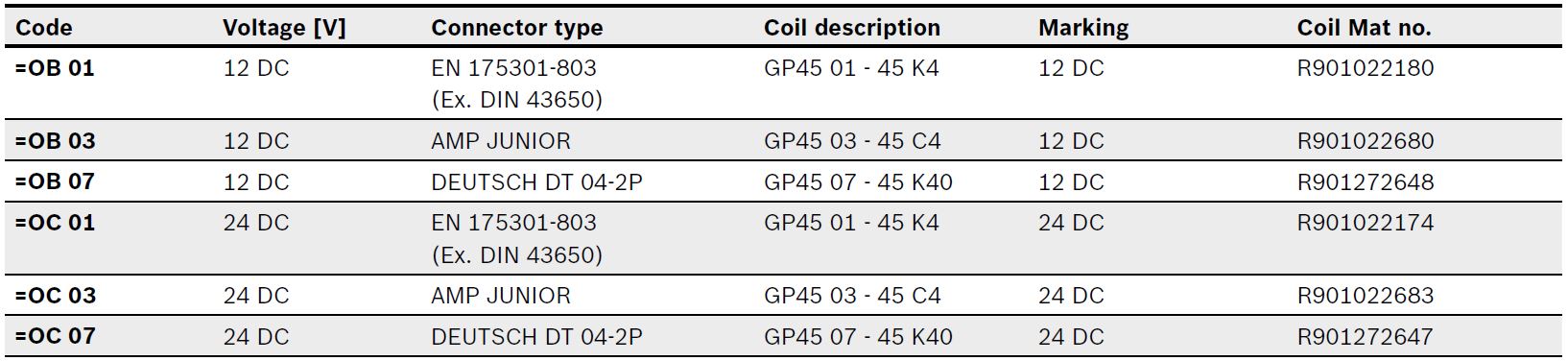

Voltage supply
00
Without coil
OB
12V DC
OC
24V DC
Electric connections
00
Without coils
01

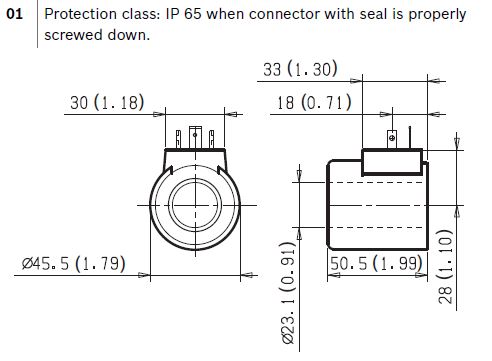

DIN

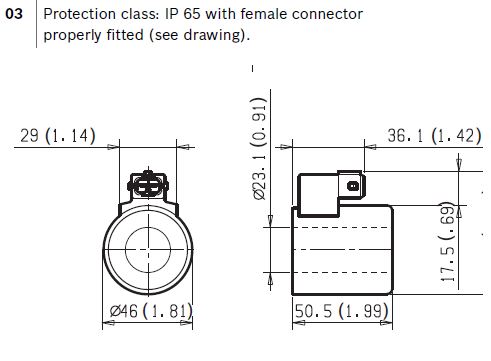

03
AMP JUNIOR
07

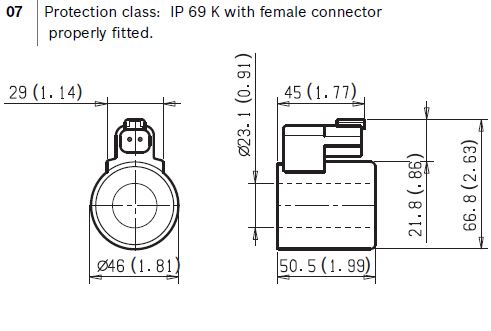

DEUTSCH DT 04-2P
Ports
0

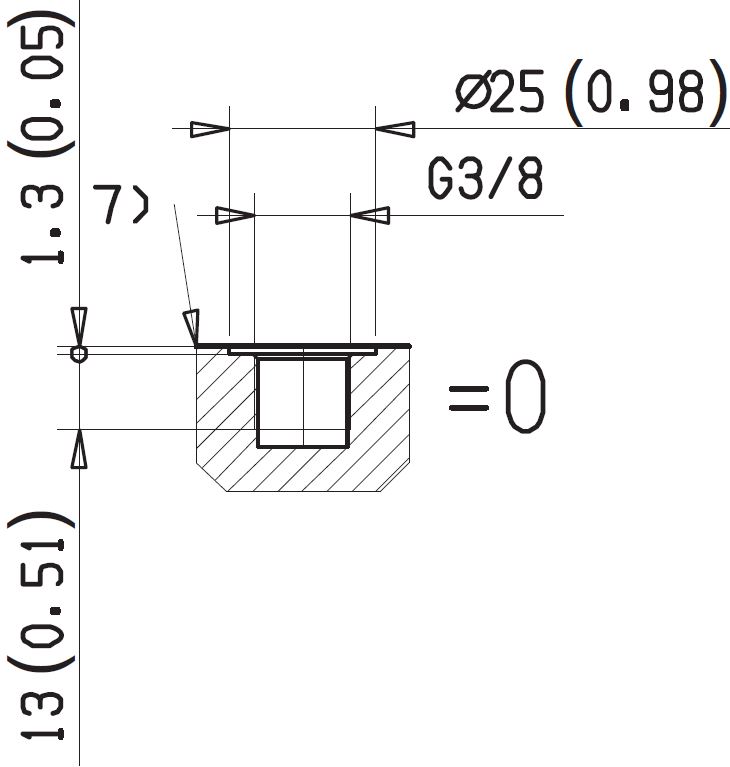

G 3/8 DIN 3852
1

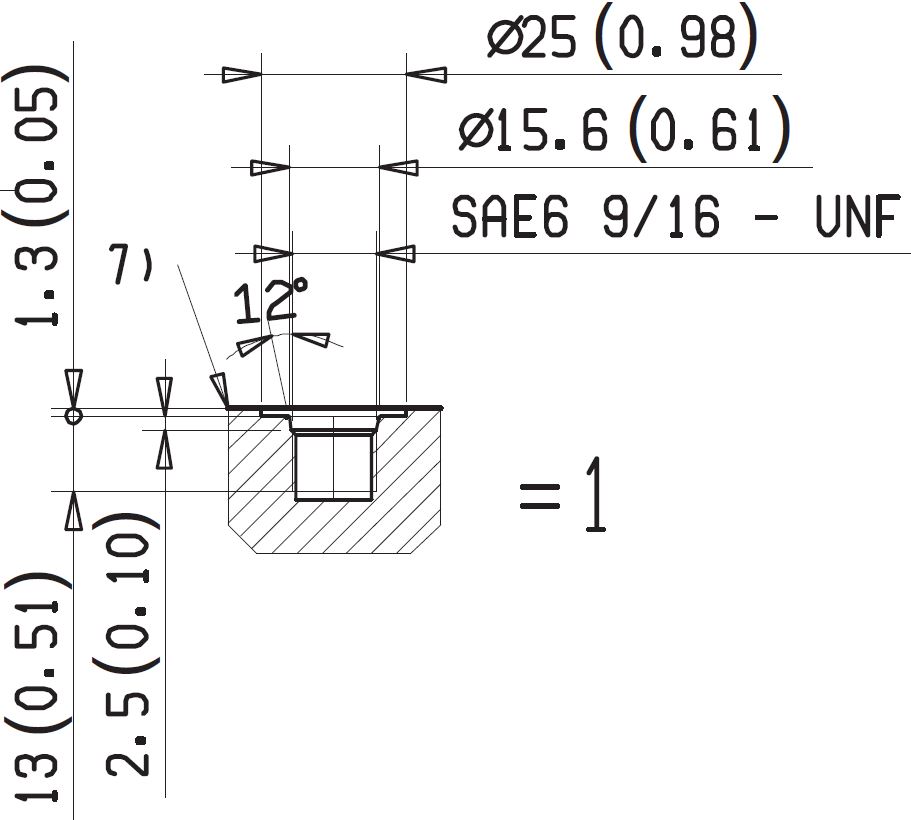

9/16-18 UNF 2-B (SAE6)
2

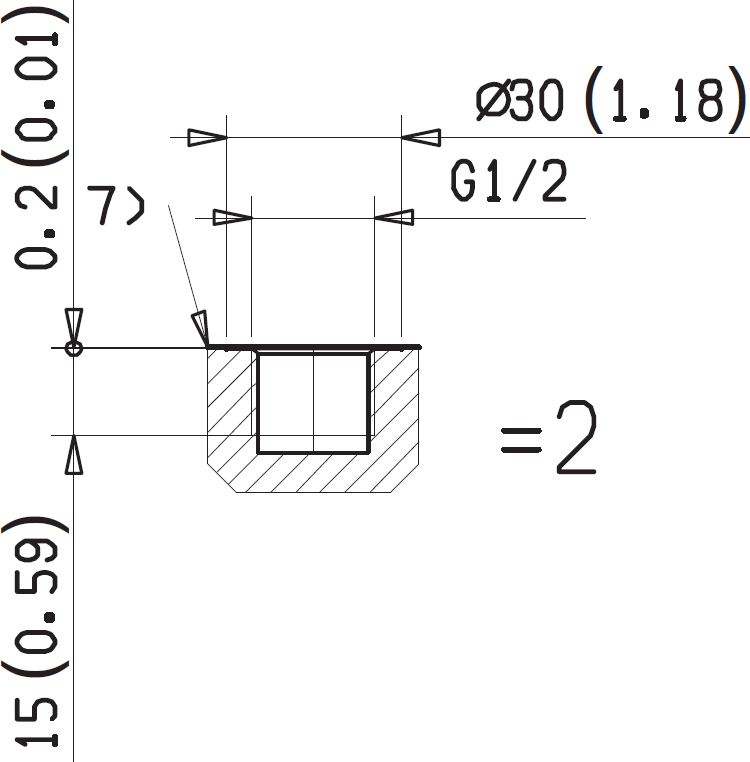

G 1/2 DIN 3852
3

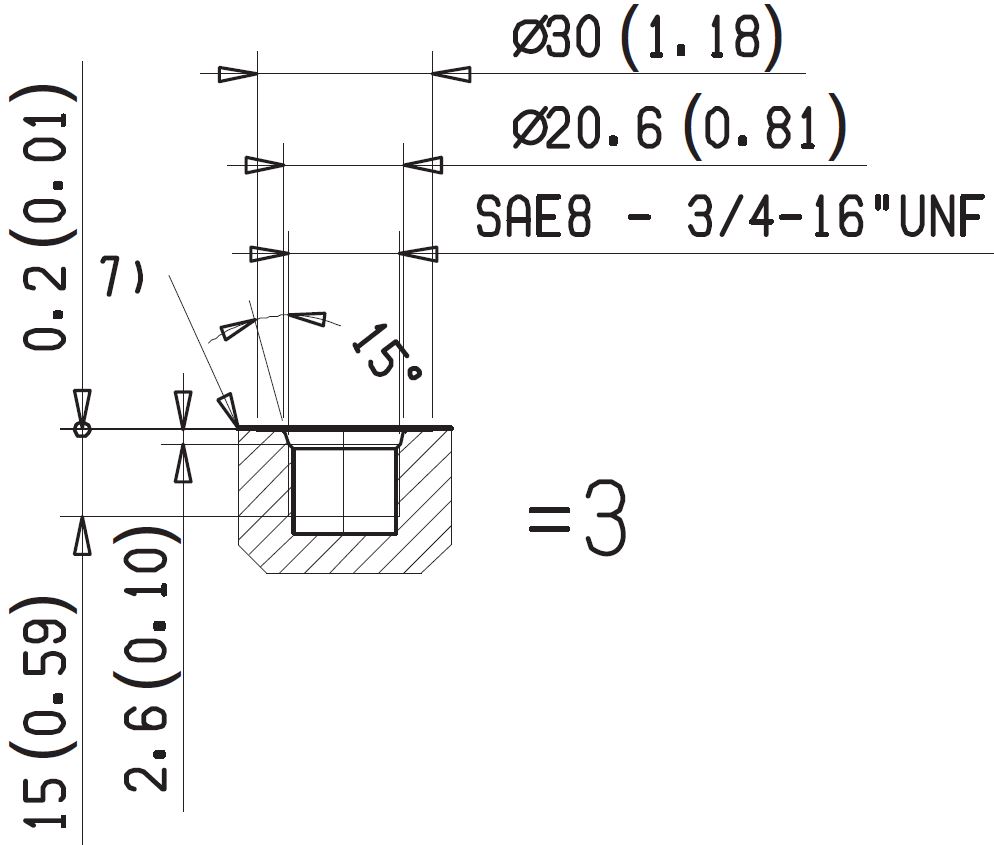

3/4-16 UNF 2-B (SAE8)
Options
No options
0T
Twist type manual override (180°)
Documentation
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:L881
Material number:
| The following data were selected. |
|---|
