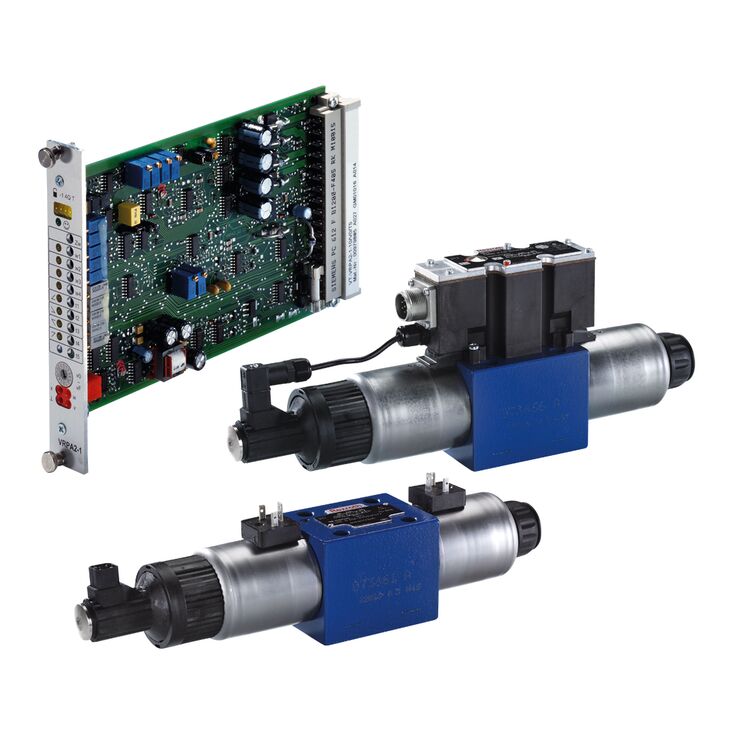

Proportional directional valves, direct operated, with electrical position feedback, without/with integrated electronics – Type 4WRE
Consultation request
Type code
4
WRE
-
2X
/
G24
/
V
Proportional directional valves, direct operated, with electrical position feedback, without/with integrated electronics; Nominal size 6 and 10; Component series 2X; Maximum operating pressure 315 bar; Maximum flow NG6: 80 l/min; Maximum flow: 180 l/min.
Display results list
Result count
150 from 150
Type
Proportional directional valves, direct operated, with electrical position feedback
WRE
Proportional directional valves, direct operated, with electrical position feedback
Electronics
With external electronics
E
With integrated electronics (OBE)
Nominal size
6
Nominal size 6
10
Nominal size 10
Control spool
E
Spool type E
E1-
Spool type E1

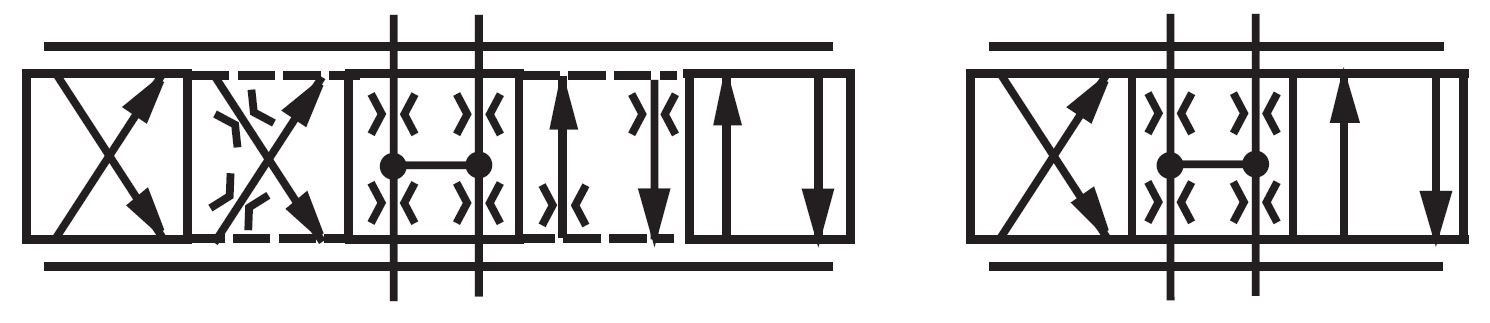

V
Spool type V
V1-
Spool type V1
W
Spool type W
W1-
Spool type W1

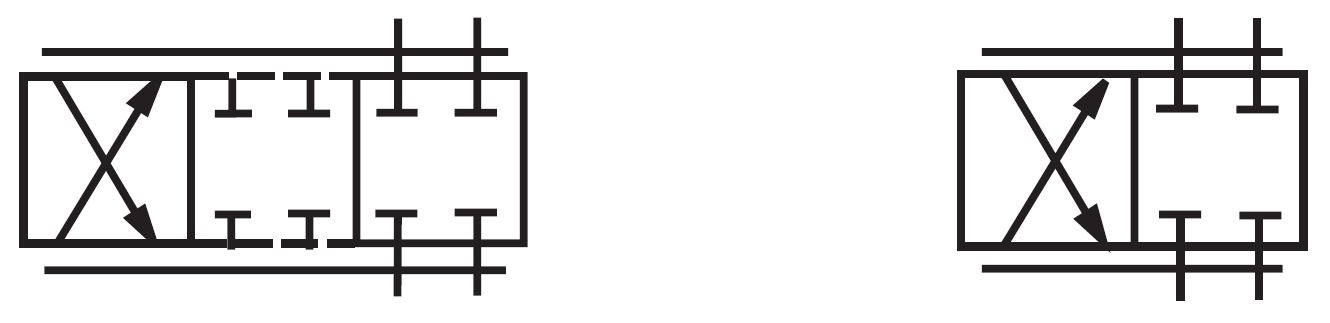

EA
Spool type EA

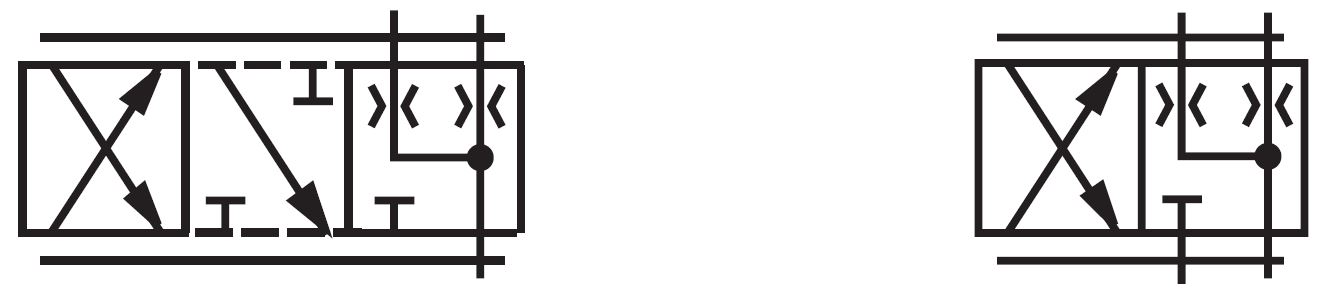

WA
Spool type WA
Nominal flow
04
4 l/min
08
8 l/min
16
16 l/min
25
25 l/min
32
32 l/min
50
50 l/min
75
75 l/min
Component series
Component series 20 to 29
2X
Component series 20 to 29
Supply voltage
Direct voltage 24 V
G24
Direct voltage 24 V
Electrical connection
K4
For 4WRE, without mating connector, with connector according to DIN EN 175301-803
K31
For 4WREE, without mating connector, with connector according to DIN EN 175301-803
Electronic interface
Type 4WRE
A1
Command value ±10 V
F1
Command value 4 … 20 mA
Seal material
FKM-seals
V
FKM-seals
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:4WRE-2X/G24/V
| The following data were selected. | ||
|---|---|---|
| Ports | 4 | 4 main ports |
| Type | WRE | Proportional directional valves, direct operated, with electrical position feedback |
| Component series | 2X | Component series 20 to 29 |
| Supply voltage | G24 | Direct voltage 24 V |
| Seal material | V | FKM-seals |
