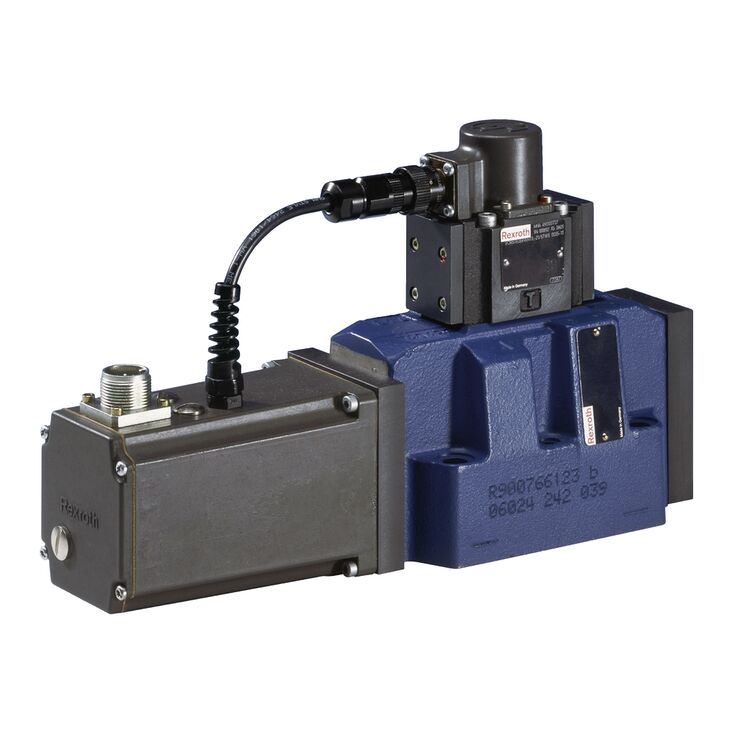

Directional servo-valve in 4-way design, Type 4WSE3E
Consultation request
Type code
4WSE3E
16
2X
/
/
K31
Electrically operated, 3-stage directional servo-valve in 4-way design in nominal size 16; Component series 2X; Maximum operating pressure 350 bar; Maximum flow 570 l/min
Display results list
Result count
56 from 56
Type
Electrically operated, 3-stage directional servo-valve in 4-way design
4WSE3E
Electrically operated, 3-stage directional servo-valve in 4-way design
Nominal size
Nominal size 16
16
Nominal size 16
Control spool
V
Spool type V
V1-
Spool type V1
Control spool position in de-energized state
Not defined
P
100% P → A / B → T
Nominal volumetric flow rate
100
105 l/min
150
150 l/min
200
200 l/min
300
260 l/min
Control spool overlap
D
0 to 0,5% positive
E
0 to 0,5% negative
Component series
Device series 20 to 29
2X
Device series 20 to 29
Seal material
M
NBR seals
V
FKM seals
Pilot flow
PT
Pilot oil supply internal, return internal
PY
Pilot oil supply internal, return external
XT
Pilot oil supply external, return internal
XY
Pilot oil supply external, return external
Pressure rating
7
210 bar
9
315 bar
Supply voltage
15
± 15 V
24
+ 24 V
Electrical connection
6 + PE, without mating connector
K31
6 + PE, without mating connector
Electronics interface
A1
Command value ± 10 V
C1
Command value ± 10 mA
F1
Sollwert 4 bis 20 mA
Additional information
Further details in plain text of the consultation request
Further details in plain text of the consultation request
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:4WSE3E162X//K31
| The following data were selected. | ||
|---|---|---|
| Type | 4WSE3E | Electrically operated, 3-stage directional servo-valve in 4-way design |
| Nominal size | 16 | Nominal size 16 |
| Component series | 2X | Device series 20 to 29 |
| Electrical connection | K31 | 6 + PE, without mating connector |
| Additional information | Further details in plain text of the consultation request | |
