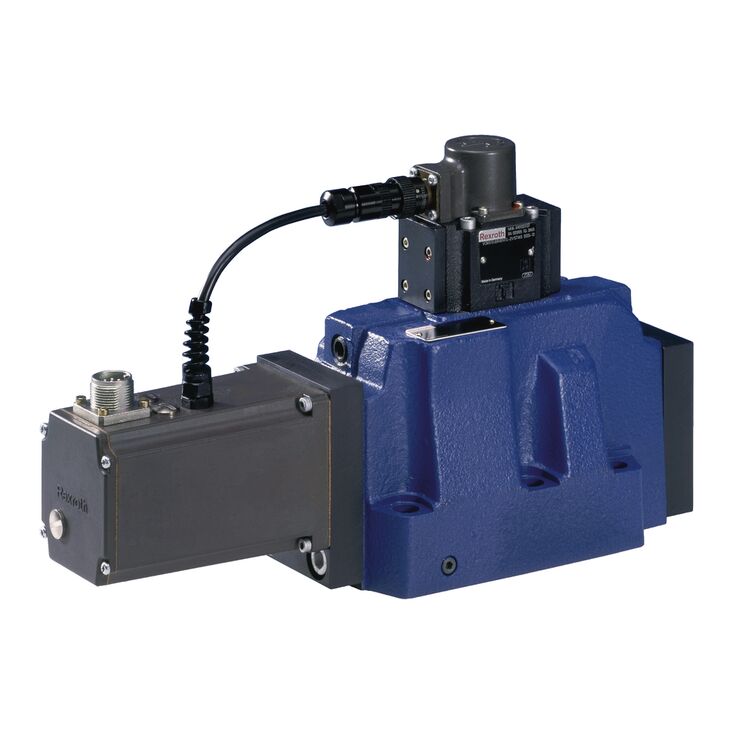

Directional servo-valve in 4-way design, Type 4WSE3E
Consultation request
Type code
4WSE3E
25
3X
/
/
K31
Electrically operated, 3-stage directional servo-valve in 4-way design in nominal size 25; Component series 3X; Maximum operating pressure 350 bar; Maximum flow 1020 l/min.
Display results list
Result count
26 from 26
Nominal size
Nominal size 25
25
Nominal size 25
Control spool
V
Spool type V
V1-
Spool type V1
Control spool position in de-energized state
Not defined
P
100% P → A / B → T
Nominal volumetric flow rate
300
300 l/min
400
380 l/min
500
450 l/min
Control spool overlap
D
0 to 0,5% positive
E
0 to 0,5% negative
Component series
Component series 30 to 39
3X
Component series 30 to 39
Seal material
M
NBR seals
V
FKM seals
Pilot flow
XY
Pilot oil supply external, return external
XT
Pilot oil supply external, return internal
PY
Pilot oil supply internal, return external
PT
Pilot oil supply internal, return internal
Pressure rating
7
210 bar
9
315 bar
Supply voltage
15
± 15 V
24
+ 24 V
Electrical connection
6+PE, without mating connector
K31
6+PE, without mating connector
Electronics interface
A1
Command value ± 10 V
C1
Command value ± 10 mA
F1
Sollwert 4 bis 20 mA
Additional information
Further details in plain text of the consultation request
Further details in plain text of the consultation request
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:4WSE3E253X//K31
| The following data were selected. | ||
|---|---|---|
| Type | 4WSE3E | Electrically operated, 3-stage directional servo-valve in 4-way design |
| Nominal size | 25 | Nominal size 25 |
| Component series | 3X | Component series 30 to 39 |
| Electrical connection | K31 | 6+PE, without mating connector |
| Additional information | Further details in plain text of the consultation request | |
