Selection Tool for new solenoid coils D36 type
Consultation request
Type code
OD02
00

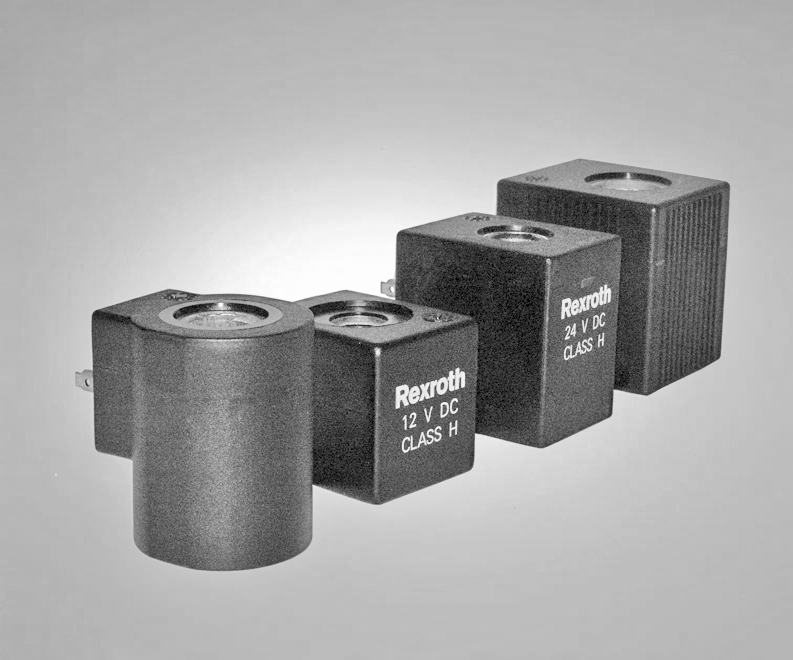

The new coil Family D36 provides the basis for Bosch Rexroth ‘New Solenoid Concept’ Cartridge Valves with optimized technical performance, suited for broader bandwidth of applications. The rugged design allows the valve equipped with this coil system to be used also in the harshest environments in mobile machinery applications. The coils exceed IP69K standard, are tested under harsh vibration and temperature cycle conditions and provide an excellent long-term operation. The fully plastic external housing design provides chemical resistance against corrosion induced by salt-spray or chemicals (e.g. agriculture).
Display results list
Result count
47 from 47
Type
36
D36 - CLASS H - 20 W - Standard
U6
D36 - CLASS H - 20 W - UL RECOGNIZED
Connector
01

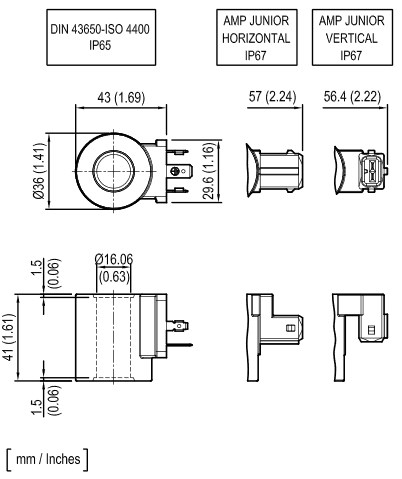

DIN 43650 - ISO 4400
07
AMP JUNIOR
15
AMP JUNIOR - Bidirectional Diode
03
KOSTAL M27x01 - Standard
20
DEUTSCH DT04-2P - Standard
22
DEUTSCH DT04-2P - Bidirectional Diode
30
AMP SUPERSEAL - Standard
32
AMP SUPERSEAL - Bidirectional Diode
40
METRIPAK - Standard
41
METRIPAK - Bidirectional Diode
02
FLYING LEAD - Standard
23
FLYING LEAD - Bidirectional Diode
Orientation of the connector or cable length
30
Standard
3P
vertical
03
cable lenght = 300 mm
10
cable lenght = 1000 mm
Voltage
OB
12 V DC
OC
24 V DC
OD
48 V DC
OU
96 V DC
AH
205 V DC
Series
Standard
00
Standard
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:OD0200
| The following data were selected. | ||
|---|---|---|
| Coil | OD02 | Coil |
| Series | 00 | Standard |
