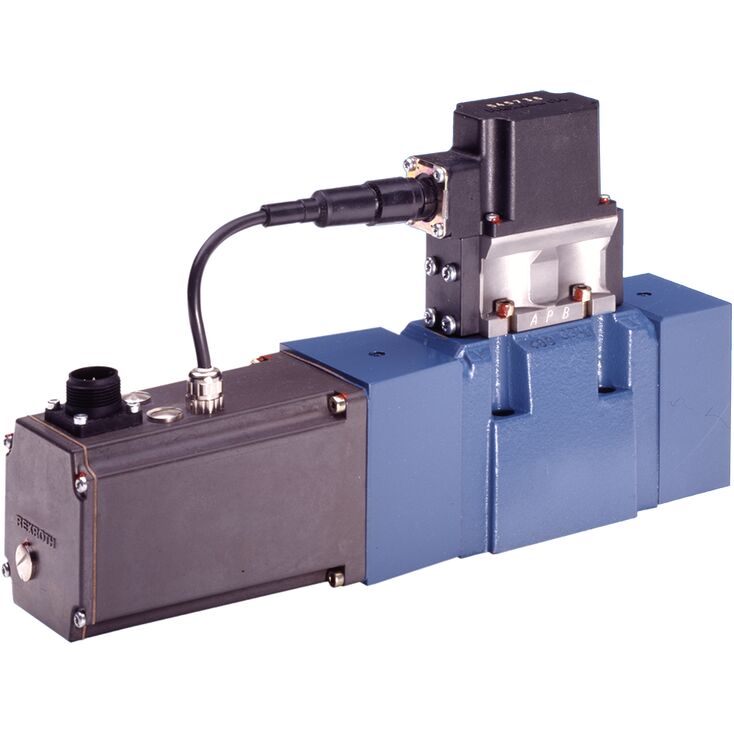

4/3 way fast response valve, Type 4WRGE
Consultation request
Type code
4WRGE
L
-
1X
/
315
G24
K31
/
Electrically operated 2-stage fast response directional control valve with servoplate pilot control and integrated control electronics; Nominal size 10 – Maximum operating pressure 315 bar; Nominal sizes 16, 25 – Maximum operating pressure 350 bar; Series 1X; Maximum flow 870 l/min
Display results list
Result count
29 from 29
Nominal size
10
Nominal size 10
16
Nominal size 16
25
Nominal size 25

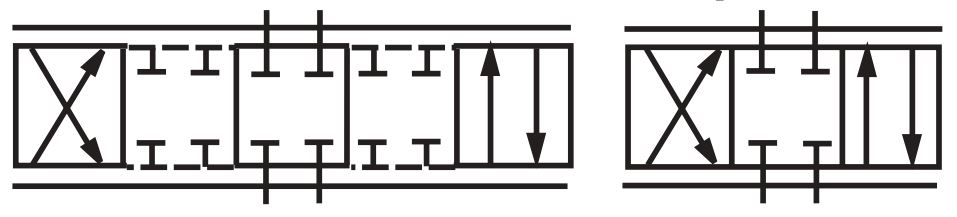

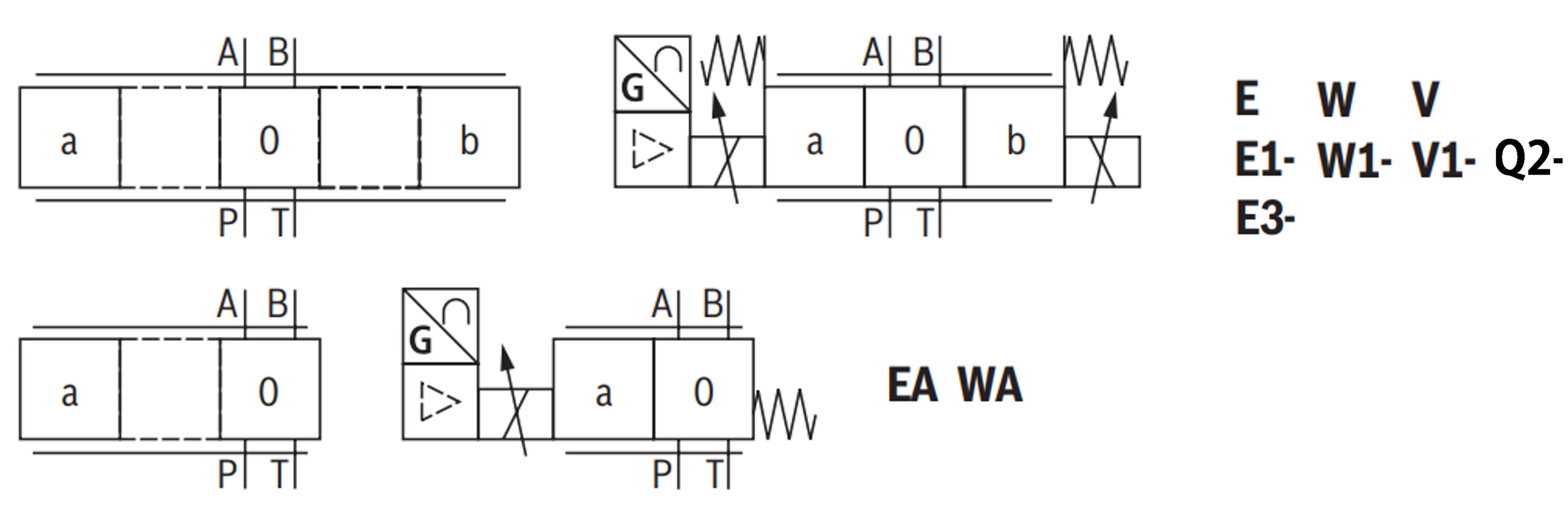

Spool
E1-
Spool type E1

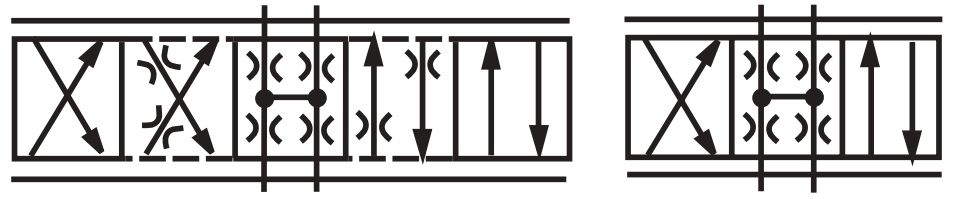

V
Spool type V
V1-
Spool type V1
Nominal volume flow
50
50 l/min (size 10)
100
100 l/min (size 10)
125
125 l/min (size 16)
200
200 l/min (size 16)
250
250 l/min (size 25)
350
350 l/min (size 25)
Characteristic curve form
linear
L
linear
Device series
Device series 10 to 19
1X
Device series 10 to 19
Pilot pressure
10 to 315 bar
315
10 to 315 bar
Supply voltage
Supply voltage 24VDC
G24
Supply voltage 24VDC
Pilot oil supply and drain
External pilot oil supply and return
External pilot oil supply and return
Electrical connection
with component plug to E DIN 43 563-AM6-3, without plug in connector
K31
with component plug to E DIN 43 563-AM6-3, without plug in connector
Electronic interface
A1
Command value +/- 10VDC
C1
Command value +/- 10 mA
Electrical connection
without sandwich plate directional valve
WG152
with sandwich plate directional valve
Seal material
M
NBR seal
V
FKM seal
Additional information
Further details in plain text of the consultation request
Further details in plain text of the consultation request
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:4WRGEL-1X/315G24K31/
| The following data were selected. | ||
|---|---|---|
| Characteristic curve form | L | linear |
| Device series | 1X | Device series 10 to 19 |
| Pilot pressure | 315 | 10 to 315 bar |
| Supply voltage | G24 | Supply voltage 24VDC |
| Pilot oil supply and drain | External pilot oil supply and return | |
| Electrical connection | K31 | with component plug to E DIN 43 563-AM6-3, without plug in connector |
