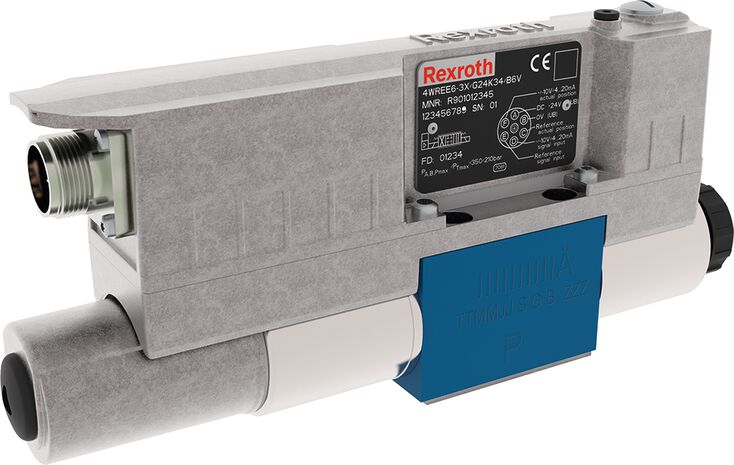

Proportional directional valve, direct operated, with electrical position feedback and integrated electronics (OBE), Type 4WREE
Consultation request
Type code
4
WRE
E
6
-
3X
/
/
24
Proportional directional valve, 4/3-way version, direct operated, with electrical position feedback and integrated electronics (OBE); Nominal size 6; Component series 3X; Maximum operating pressure 350 bar; Maximum flow 80 l/min.
Display results list
Result count
134 from 134
Number of main ports
4 main ports
4
4 main ports
Type
Proportional directional valve direct operated,
WRE
Proportional directional valve direct operated,
Drive electronics
With integrated electronics
E
With integrated electronics
Nominal size
Nominal size 6
6
Nominal size 6
Control spool

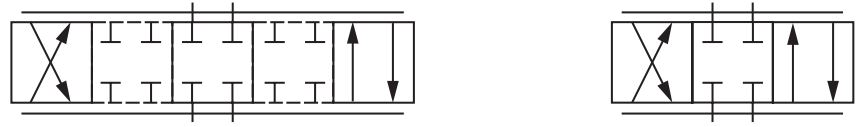

E
Spool type E
E1-
Spool type E1

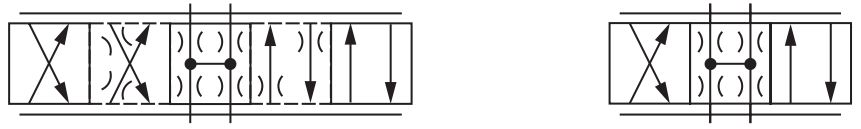

V
Spool type V
V1-
Spool type V1

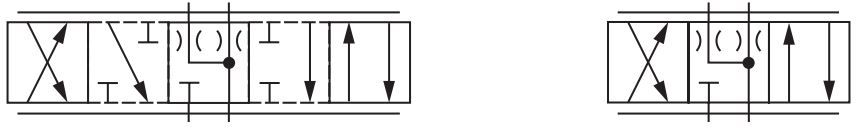

W
Spool type W
W1-
Spool type W1

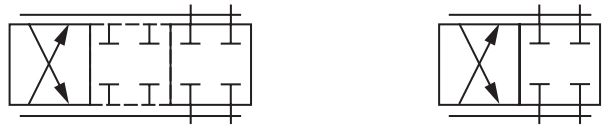

EA
Spool type EA

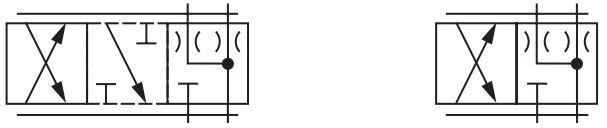

WA
Spool type WA
Nominal volume flow
04
4 l/min
08
8 l/min
16
16 l/min
32
32 l/min
Step function
Without step function
J
Overlap jump (opening point 5 % command value with symbols E, W and W1-)
Component series
Component series 30 to 39
3X
Component series 30 to 39
Seal material
M
NBR
V
FKM
Supply voltage
Direct voltage 24V
24
Direct voltage 24V
Electronic interface
A1
Command value ± 10V
F1
Command value 4 - 20mA
Additional information
-967
With pressure compensation element in the OBE
Without pressure compensation element in the OBE
Documentation
Add to basket
| You have successfully finished your selection. |
| Material number: |
Product description
Type code:4WREE6-3X//24
| The following data were selected. | ||
|---|---|---|
| Number of main ports | 4 | 4 main ports |
| Type | WRE | Proportional directional valve direct operated, |
| Drive electronics | E | With integrated electronics |
| Nominal size | 6 | Nominal size 6 |
| Component series | 3X | Component series 30 to 39 |
| Supply voltage | 24 | Direct voltage 24V |
